(55.512.CI[01]) - ELECTRIC MIRROR HARNESS

Запчасти Case IH PATRIOT 3240 (55.512.CI[01]) - ELECTRIC MIRROR HARNESS (55) - ELECTRICAL SYSTEMS

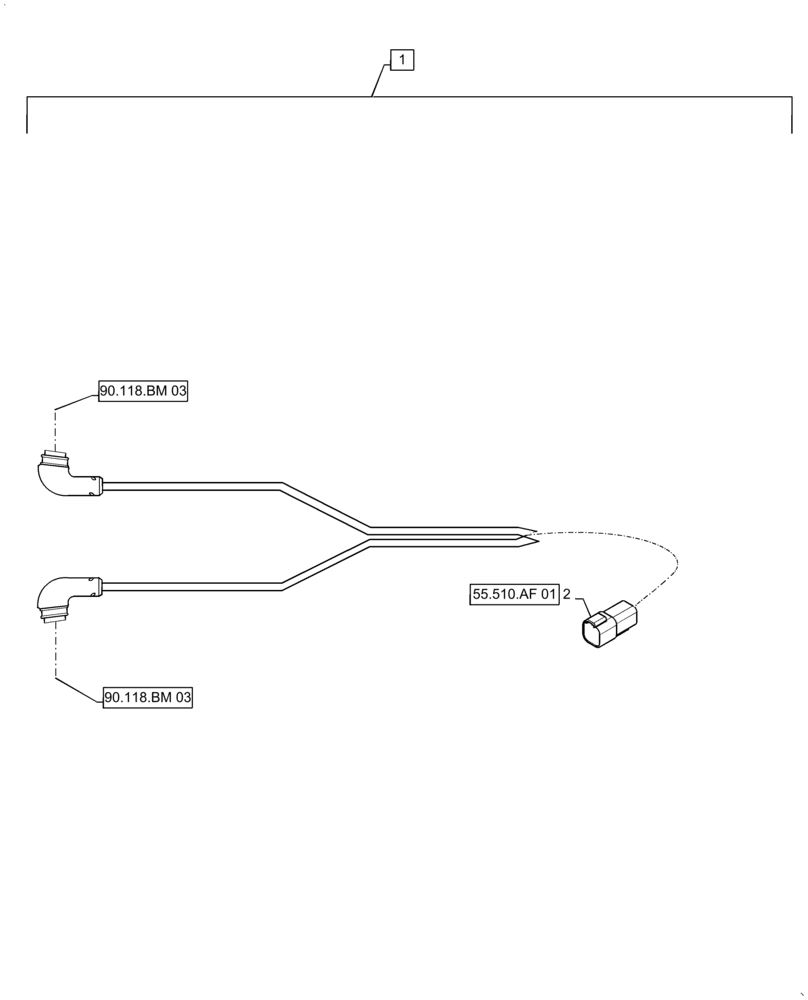

Схема запчастей Case IH PATRIOT 3240 - (55.512.CI[01]) - ELECTRIC MIRROR HARNESS (55) - ELECTRICAL SYSTEMS
90.118.bm 03
90.118.bm 03
1
55.510.af 01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87272132

WIRE HARNESS

Complete, Inc 2

1шт.

2

87694152

CONTACT HOUSING,Male, 6 Pole

Mirror, X-350M

1шт.

2

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, Mirror, X-350M

5шт.

2

87694147

WEDGE,Locking, Green

Mirror, X-350M

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing, Mirror, X-350M

1шт.
