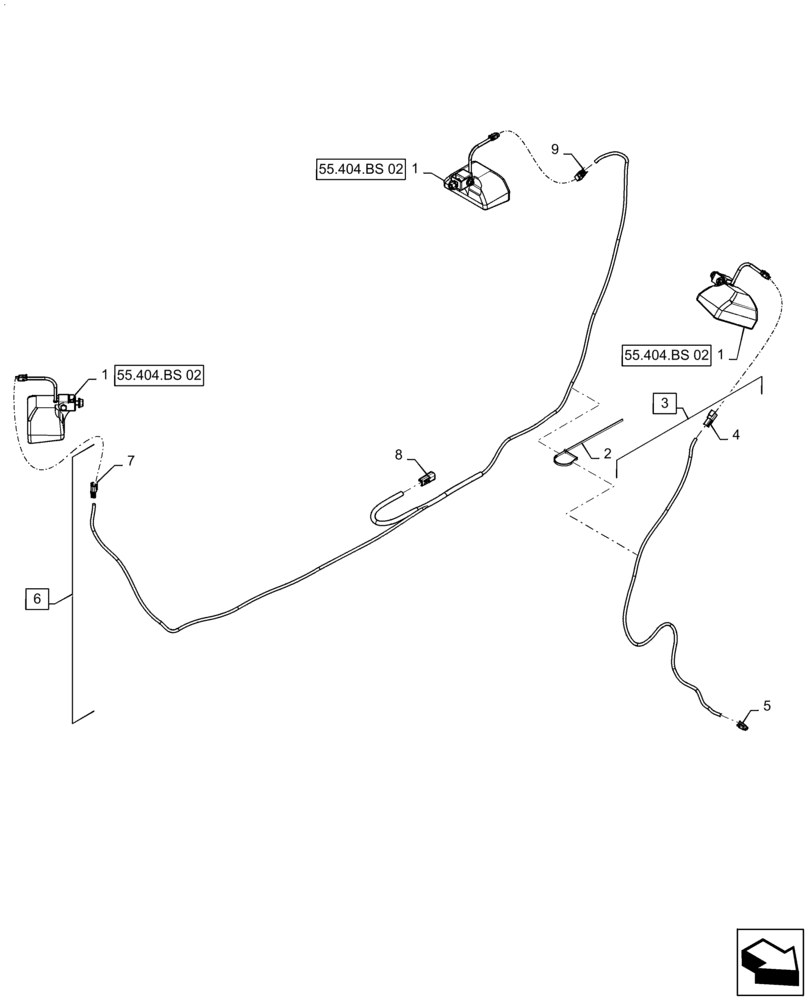

Запчасти Case IH PATRIOT 3240 (55.404.BS[01]) - MID SHIP LIGHTING ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

87658615

LAMP

Flood Assembly

3шт.

See 55.404.BS 02 For Service Parts

1шт.

2

BN570007

STRAP

Zip Tie

1шт.

3

87270252

WIRE HARNESS

Operation Station Lamp, Incl 4 - 5

1шт.

4

87696547

ELEC CONNECTOR,Female, 2 Cavities

2 Terminal, J-002M Flood Light

1шт.

4

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Wedge Lock, J-002M Flood Light

1шт.

4

87696141

TERMINAL

Male, Nickel, J-002M Flood Light

2шт.

5

87696093

ELEC CONNECTOR,Female, 2 Cavities

2 Terminal, J001F Remote

1шт.

5

87696145

LOCKING TAB

Wedge Lock, J001F Remote

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Female, Nickel, J001F Remote

2шт.

6

87270406

WIRE HARNESS

Mid Ship Lights, Incl 7 - 9

1шт.

7

87696547

ELEC CONNECTOR,Female, 2 Cavities

2 Terminal, Right Mid Ship Lamp, X-751M

1шт.

7

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Wedge Lock, Right Mid Ship Lamp, X-751M

1шт.

7

87696141

TERMINAL

Male, Nickel, Right Mid Ship Lamp, X-751M

2шт.

8

87694154

CONTACT HOUSING,Male, 4 Pole

Mid Ship Lights, X-609M

1шт.

8

87694145

ELEC CONNECTOR

Wedge Lock, Mid Ship Lights, X-609M

1шт.

8

87695623

ELEC. TERMINAL PIN

Male, Nickel, Mid Ship Lights, X-609M

4шт.

9

87696547

ELEC CONNECTOR,Female, 2 Cavities

2 Terminal, Left Mid Ship Lamp, X-750M

1шт.

9

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Wedge Lock, Left Mid Ship Lamp, X-750M

1шт.

9

87696141

TERMINAL

Male, Nickel, Left Mid Ship Lamp, X-750M

2шт.
