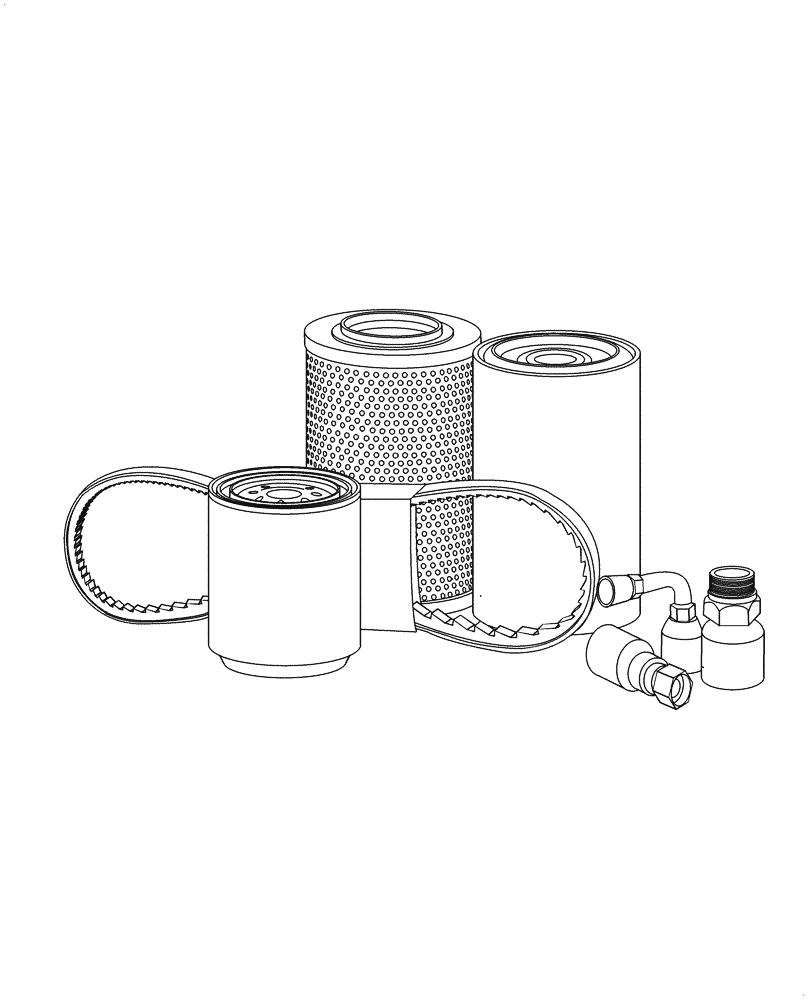

Запчасти Case IH PATRIOT 3240 (05.100.02[01]) - INITIAL STOCK LIST B (05) - SERVICE & MAINTENANCE

83957211

RADIATOR CAP

1шт.

86507190

CAP

Coolant Recovery Bottle

1шт.

84206552

FILLER CAP,Male

DEF

1шт.

BN68502

CAP

Fuel, Lockable

1шт.

2853410

FILLER CAP,Female

Oil

1шт.

4895577

PLUG

Oil Drain

1шт.

2830546

SEALING WASHER

Oil Drain

1шт.

87758997

COIL

Hydraulic Valve

1шт.

87758994

COIL

Hydraulic Valve

1шт.

R32551

FLUID

DEF, 2.5 Gal, Ship Direct

1шт.

R32552

FLUID

DEF, 55 Gal, Ship Direct

1шт.

R32553

FLUID

DEF, 275 Gal, Ship Direct

1шт.

R32554

FLUID

DEF, 330 Gal, Ship Direct

1шт.

87270662

INTAKE AIR HOSE

1шт.

87340760

INTAKE AIR HOSE,88.90 mm ID x 110.00

1шт.

87270787

RADIATOR HOSE,49.00 mm ID, 57.00 mm ID x 100.00 mm, SAE J20, SAE 20R4 CLASS D1

Lower

1шт.

BN324394

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE J20, SAE 20R4

Upper

1шт.

BN325954

IMPELLER

Ace Pump

1шт.

86502201

IGNITION KEY

Ignition, Cab

1шт.

87272656

REPAIR KIT

Brake Disc

1шт.

84480652

SVC MAINTENANCE KIT

DEF Line Service Kit

1шт.

84480641

COMPLETE TOOL BOX

DEF Line Tool Kit

1шт.

84480359

SVC MAINTENANCE KIT

DEF Limp Home Kit

1шт.

BN304248

AGITATOR

Tank

1шт.

343509A1

JET

360 Rinse Nozzle

1шт.

87603551

SEAL

O-Ring

1шт.

87603554

O-RING,4mm Thk x 150mm ID, 75 Duro

1шт.

87758324

PISTON

Double

1шт.

87758325

PISTON

Single

1шт.

84554639

TUBE

Upper

1шт.

BN325618

POTENTIOMETER,1000 Ohm

Ground Speed

1шт.

295006A1

RECEIVER-DRYER

1шт.

87269847

REPAIR KIT

Motor

1шт.

86986214

SEAL KIT

Active Suspension Cylinder

1шт.

87565601

SEAL KIT

Gearbox

1шт.

BN324211

SEAL KIT

Steering Cylinder

1шт.

87266795

SEAL KIT

Axle Adjust Cylinder

1шт.

47413608

SEAL KIT

Boom Level Cylinder

1шт.

87267940

SEAL KIT

Inner Boom Fold Cylinder

1шт.

87746975

SEAL KIT

Inner Boom Fold Cylinder

1шт.

87746977

SEAL KIT

Outer Boom Fold Cylinder

1шт.

87267939

SEAL KIT

Boom Lift Cylinder

1шт.

87603571

SEAL KIT

Hydraulic Pump

1шт.
