Запчасти Case IH PATRIOT 3240 (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

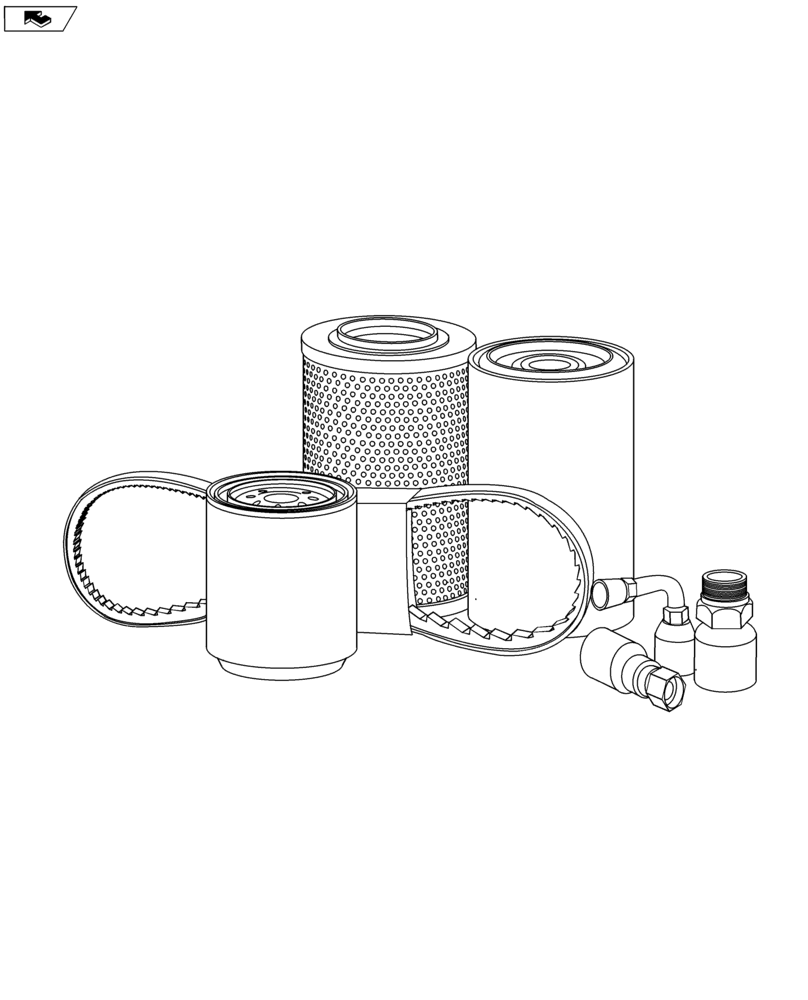

Схема запчастей Case IH PATRIOT 3240 - (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE
home

Артикул

Название

Примечание

Количество

.

4897898

ENGINE OIL FILTER,93.5mm OD x 173mm L, M27, 10 Microns

1шт.

.

87356545

AIR FILTER

Primary

1шт.

.

87356547

AIR FILTER

Secondary

1шт.

.

87267363

AIR FILTER,Cab Charcoal Recirculation

1шт.

.

293615A1

FILTER

1шт.

.

87272033

ELEMENT

In-Tank

1шт.

.

87601556

FILTER

For LH and RH of the Pump

2шт.

.

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Primary

1шт.

.

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

Secondary, In-line

1шт.

.

42568767

FILTER

Crankcase

1шт.

.

BN304339

VALVE

Breather, Hyd Tank

1шт.

.

47364243

FILTER

DEF, Module

1шт.

.

87519458

V-BELT

Engine

1шт.

.

87518813

V-BELT,12.70 mm W

Engine

1шт.

Выбрано товаров: 14
