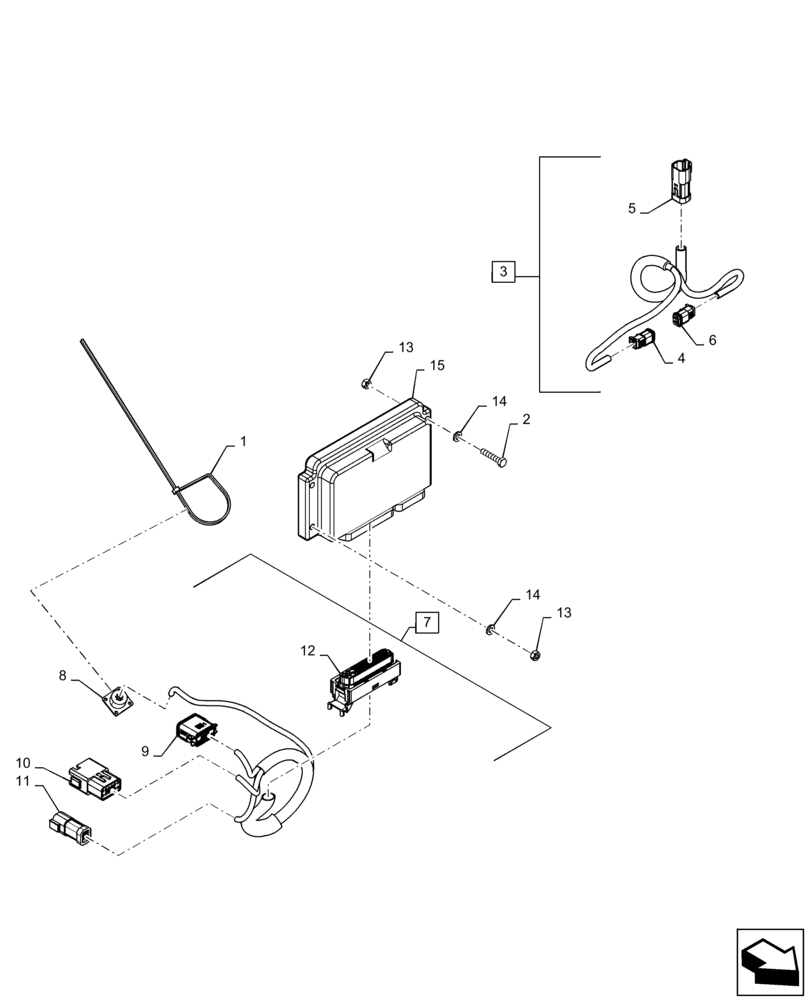

Запчасти Case IH PATRIOT 3240 (55.019.AN[01]) - CONTROLLER, REXROTH (55) - ELECTRICAL SYSTEMS

1

BN570007

STRAP

Zip Tie

1шт.

2

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

3

84584232

WIRE HARNESS

Propel Adaptor, Incl 4 - 6

1шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

Propel Adapter Forward, X-639F2

1шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock, Propel Adapter Forward, X-639F2

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Propel Adapter Forward, X-639F2

2шт.

5

84122359

WIRE CONNECTOR

4 Pole, Male, Propel Adapter, X-639M

1шт.

5

87694145

ELEC CONNECTOR

Wedge Lock, Propel Adapter, X-639M

1шт.

5

87695623

ELEC. TERMINAL PIN

Male, Nickel, Propel Adapter, X-639M

4шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Propel Adapter Reverse, X-639F3

1шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock, Propel Adapter Reverse, X-639F3

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Propel Adapter Reverse, X-639F3

2шт.

7

47617295

WIRE HARNESS

Rexroth Control, Incl 8 - 12

1шт.

8

87736919

CONTACT HOUSING,Female, 9 Pole

Test Port, Rexroth Control, X-059F

1шт.

8

84277236

TERMINAL

Male, Nickel, Rexroth Control, X-059F

4шт.

9

225403C1

CONNECTOR, ELEC

Rexroth Control, Control Interface 1, X-010F1

1шт.

9

87695651

LOCKING TAB,Wedge Lock

Wedge Lock, Rexroth Control, Control Interface 1, X-010F1

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Rexroth Control, Control Interface 1, X-010F1

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Rexroth Control, Control Interface 1, X-010F1

8шт.

10

225464C1

CONNECTOR, ELEC

Rexroth Control, Control Interface 1, X-012M1

1шт.

10

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock, Rexroth Control, Control Interface 1, X-012M1

1шт.

10

87695623

ELEC. TERMINAL PIN

Male, Nickel, Rexroth Control, Control Interface 1, X-012M1

7шт.

11

84122359

WIRE CONNECTOR

Rexroth Control, Interface, X-018M1

1шт.

11

87694145

ELEC CONNECTOR

Wedge Lock, Rexroth Control, Interface, X-018M1

1шт.

11

87695623

ELEC. TERMINAL PIN

Male, Nickel, Rexroth Control, Interface, X-018M1

4шт.

12

87703306

MULTIPOLE CONNECTOR,Female, 52 Pole

Rexroth Control, Controller, X-021F

1шт.

12

87703308

CONTACT HOUSING,52 Pole

Cover, Rexroth Control, Controller, X-021F

1шт.

12

87495862

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

Female, Tin, Rexroth Control, Controller, X-021F

18шт.

12

87653842

TERMINAL

Female, Tin, Rexroth Control, Controller, X-021F

2шт.

13

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

84395083

CONTROL UNIT

Propel Control, Rexroth

1шт.
