Запчасти Case IH PATRIOT 3240 (50.200.AB[01]) - AIR CONDITIONER LINES (50) - CAB CLIMATE CONTROL

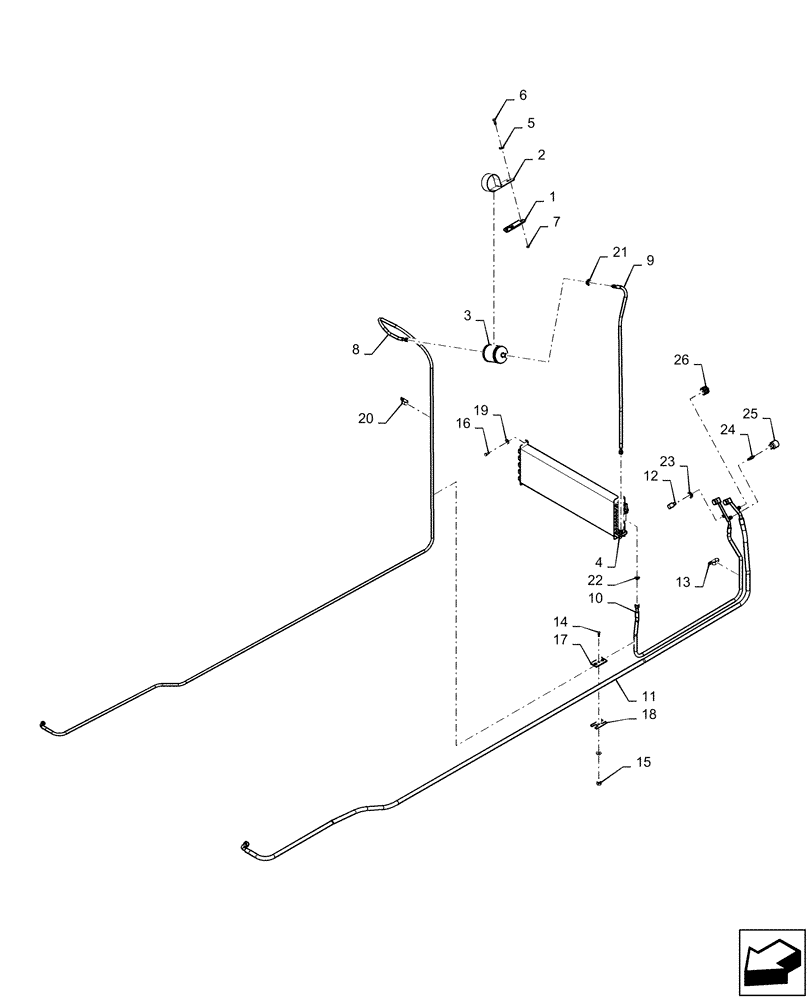

Схема запчастей Case IH PATRIOT 3240 - (50.200.AB[01]) - AIR CONDITIONER LINES (50) - CAB CLIMATE CONTROL
23
3
1
20
24
2
5
17
22
14
25
21
26
16
9
4
7
6
13
11
12
8
15
18
10
19

Артикул

Название

Примечание

Количество

1

47428687

MOUNT

A/C Drier

1шт.

2

D145289

SUPPORT

Receiver Drier

1шт.

3

295006A1

RECEIVER-DRYER

A/C

1шт.

4

87270664

CONDENSER

A/C

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

6

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

8

87270202

HOSE

Cab To Drier

1шт.

9

47668679

HOSE

Drier To Condenser

1шт.

10

87518803

HOSE

Condenser To Compressor

1шт.

11

87518804

HOSE

Compressor To Cab

1шт.

12

284273A2

SWITCH, A/C HIGH PRE

1шт.

13

R54363

CLAMP

Double

1шт.

14

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

16

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

17

87270790

SEAL

A /C Hoses

1шт.

18

87270791

PLATE

A /C Hoses

1шт.

19

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9шт.

20

L101181

CLAMP,0.75" D Clamping pipes x 2

Double

1шт.

21

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

Green

4шт.

22

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

Green

1шт.

23

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

Green

3шт.

24

1250594C1

CORE

Valve

2шт.

25

122554A1

CAP

High Side Service Port, Blue

1шт.

26

122553A1

CAP

Low Side Service Port, Blue

1шт.

Выбрано товаров: 26
