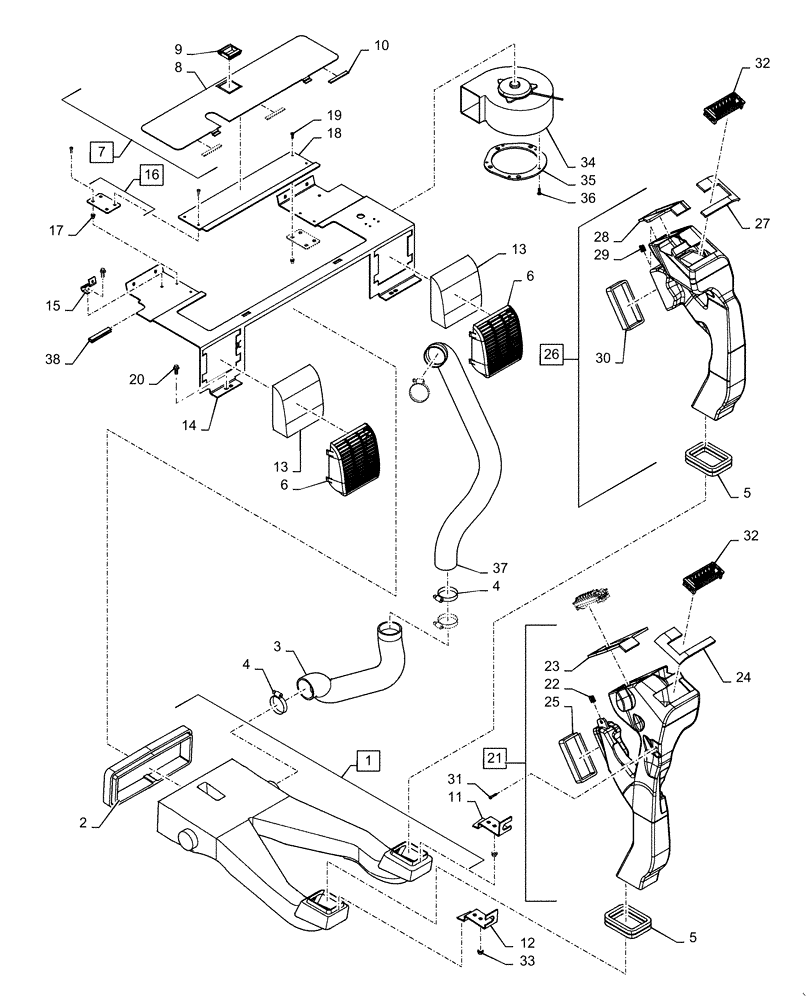

Запчасти Case IH PATRIOT 3240 (50.104.AC[01]) - AIR DUCTS & HOSES ASSY (50) - CAB CLIMATE CONTROL

1

87308202

DUCT

Assy, Main Supply, Incl 2

1шт.

2

326665A1

SEALING STRIP,51mm W x 889mm L x 8mm Thk

Air Distribution Housing, Incl in 1

1шт.

3

256331A2

HOSE

LH Fender Trim

1шт.

4

214-1544

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm, W/ Liner

4шт.

5

87452817

GASKET

Front Supply Duct

4шт.

6

301180A3

VENT (AIR)

Louver, Recirc Air

2шт.

7

87319298

COVER

Assy, Electrical, Incl 8 - 10

1шт.

8

87319299

COVER

Electrical Bay

1шт.

9

406718A1

LATCH

Recirulation Access Cover

1шт.

10

412425A1

SEAL

Seal, Recirulation Air Access Cover

5шт.

11

298465A2

SUPPORT

Bracket, Ext Trim, FWD LH

1шт.

12

300432A2

SUPPORT

Bracket, Ext Trim, FWD RH

1шт.

13

293615A1

FILTER

Recirculation Air

2шт.

14

87269666

EXTENSION

Recirculation Air Shelf

1шт.

15

87269670

BRACKET

Rear Cargo Net

2шт.

16

87269672

COVER

Mount, Incl 17

2шт.

17

336304A1

INSERT

Nut, Riveted, Flat Head, Round

4шт.

18

87269668

COVER

Electrical

1шт.

19

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

8шт.

20

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

8шт.

21

84162547

DUCT

Assy, RH Panel, Incl 22 - 25

1шт.

22

131-839

SPRING NUT,U, #10-16, Panel type

1шт.

23

87310036

GASKET

RH Duct, Face Louver

1шт.

24

87310034

GASKET

Duct, Defrost, RH

1шт.

25

87456015

GASKET

Foot Louver

1шт.

26

87310029

DUCT

Assy, LH Panel, Incl 27 - 30

1шт.

27

87310033

GASKET

Duct Defrost, LH

1шт.

28

87310035

GASKET

LH Duct, Face Louver

1шт.

29

131-839

SPRING NUT,U, #10-16, Panel type

1шт.

30

87456015

GASKET

Foot Louver

1шт.

31

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

Hex, M5 x 25, PHD, 4.8 DOR

2шт.

32

363882A1

VENT

Assy, W/O Holes, No Pop Wheat

7шт.

33

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

6шт.

34

87107380

BLOWER

Assy, Cab Pressurizer

1шт.

35

255220A2

GASKET,4.8mm Thk

Bracket to Blower

1шт.

36

87016450

SCREW,Pan, #10 - 32 x 5/8"

4шт.

37

303732A1

TUBE

Fender Trim Louver

1шт.

38

87616967

RUBBER SEAL

Trim, Cab Rear Shelf

1шт.
