Запчасти Case IH PATRIOT 3240 (50.100.AP[03]) - STANDARD HVAC ASSY (50) - CAB CLIMATE CONTROL

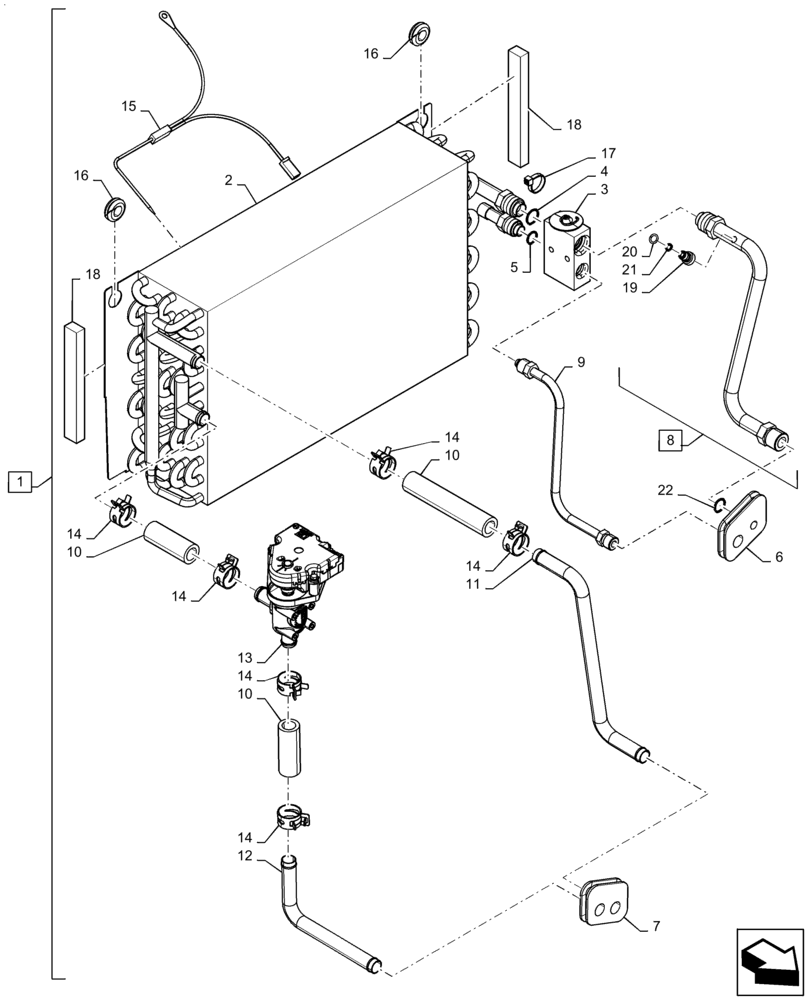

Схема запчастей Case IH PATRIOT 3240 - (50.100.AP[03]) - STANDARD HVAC ASSY (50) - CAB CLIMATE CONTROL
14
8
10
3
16
17
12
16
18
22
9
15
2
19
20
14
4
14
21
14
13
5
7
1
10
18
14
11
6
10
14

Артикул

Название

Примечание

Количество

1

47599326

AIR CONDITIONER

Assy, Standard, Incl 2 - 22

1шт.

2

86990262

CORE

Combo, Evaporator and Heater

1шт.

3

386535A1

VALVE

Thrm Exp

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

5

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

6

322989A1

GROMMET

Bulkhead A/C

1шт.

7

322990A1

GROMMET

Bulkhead Heater, Heater Hoses

1шт.

8

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

A/C Suction, HVAC Assy, Incl 4, 5, 11

1шт.

9

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

A/C Liquid HVAC Assy, Incl 4

1шт.

10

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

Supply

2шт.

11

322985A1

HEATER TUBE

Outlet, HVAC Assy

1шт.

12

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

Inlet, HVAC Assy

1шт.

13

47597104

CONTROL

Assy, Heater Valve, Incl 13, 14

1шт.

14

1954736C1

HOSE CLAMP,#24

6шт.

15

323016A1

SENSOR

Thermistor, HVAC Assy

1шт.

16

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

12шт.

18

47640983

FOAM

Side

2шт.

19

122081A1

FITTING,M10 x 1.25 x 26.43mm L

Pressure Switch, Included In 8

1шт.

20

1250594C1

CORE

Valve, Included In 8

1шт.

21

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

Included in 8

1шт.

22

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Выбрано товаров: 22
