(50.100.AP[01]) - STANDARD HVAC MOUNTING

Запчасти Case IH PATRIOT 3240 (50.100.AP[01]) - STANDARD HVAC MOUNTING (50) - CAB CLIMATE CONTROL

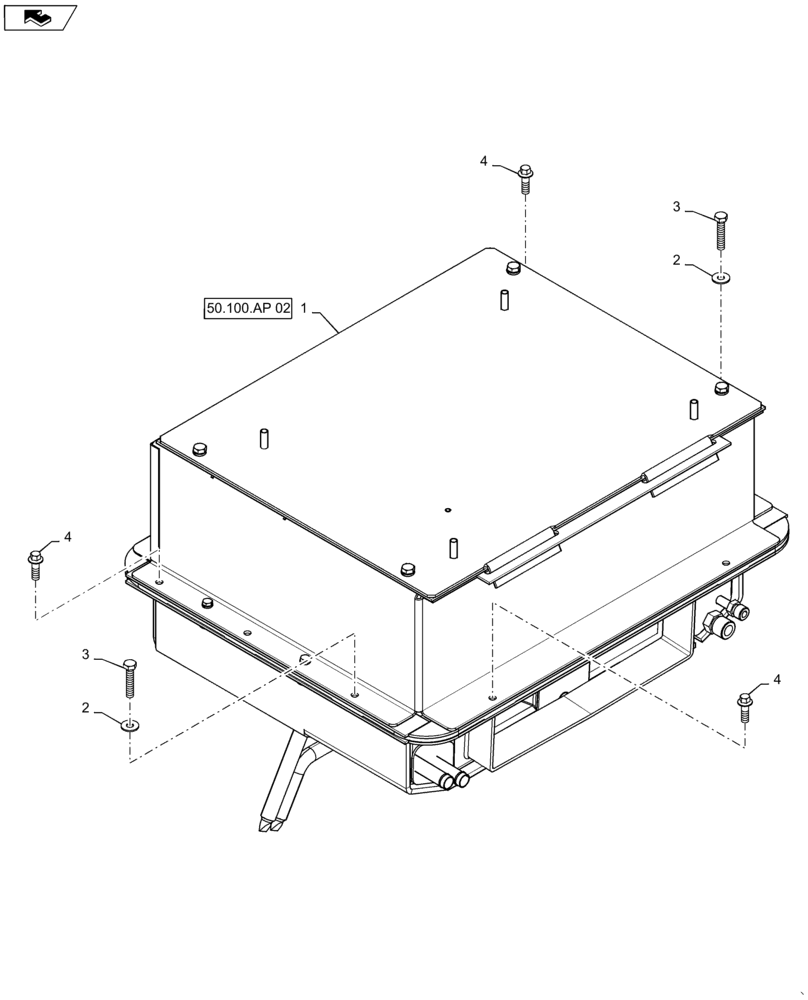

Схема запчастей Case IH PATRIOT 3240 - (50.100.AP[01]) - STANDARD HVAC MOUNTING (50) - CAB CLIMATE CONTROL
50.100.ap 02
4
2
4
home
3
4
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47599326

AIR CONDITIONER

Complete

1шт.

See 50.100.AP 02 For Service

1шт.

2

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

3

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

8шт.

4

781-24825

SELF-TAP SCREW,Hex Flg Hd, M8 x 25

4шт.
