Запчасти Case IH PATRIOT 3240 (50.100.AC[01]) - HEATER HOSES (50) - CAB CLIMATE CONTROL

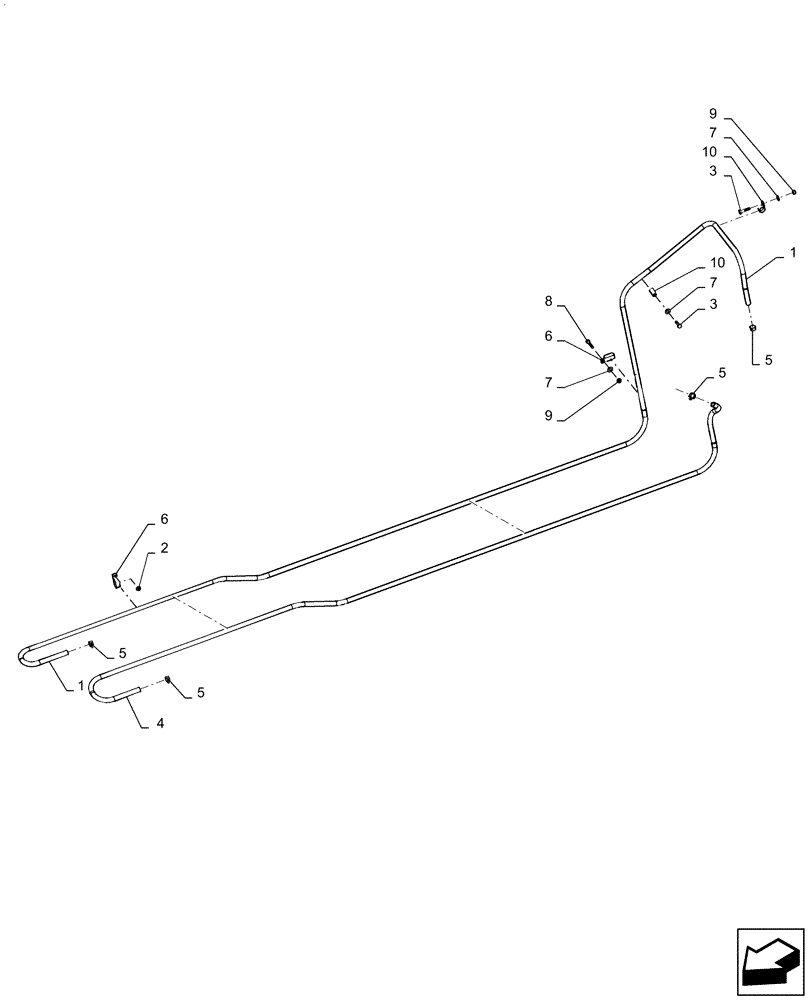

Схема запчастей Case IH PATRIOT 3240 - (50.100.AC[01]) - HEATER HOSES (50) - CAB CLIMATE CONTROL
5
8
6
2
10
9
3
5
7
7
5
9
7
10
1
5
3
1
4
6

Артикул

Название

Примечание

Количество

1

BN312581

HEATER HOSE,0.625" ID

5/8" Supply, Bulk, Black With Stripe

1шт.

2

87344227

SERRATED NUT

M8 Flange, DOR

4шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

4

BN312582

HOSE

5/8" Return, Return, Black

1шт.

5

1954736C1

HOSE CLAMP,#24

4шт.

6

R54363

CLAMP

Double

3шт.

7

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

8

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

10

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

Выбрано товаров: 10
