(44.511.AG[01]) - FRONT AND REAR WHEEL ASSY

Запчасти Case IH PATRIOT 3240 (44.511.AG[01]) - FRONT AND REAR WHEEL ASSY (44) - WHEELS

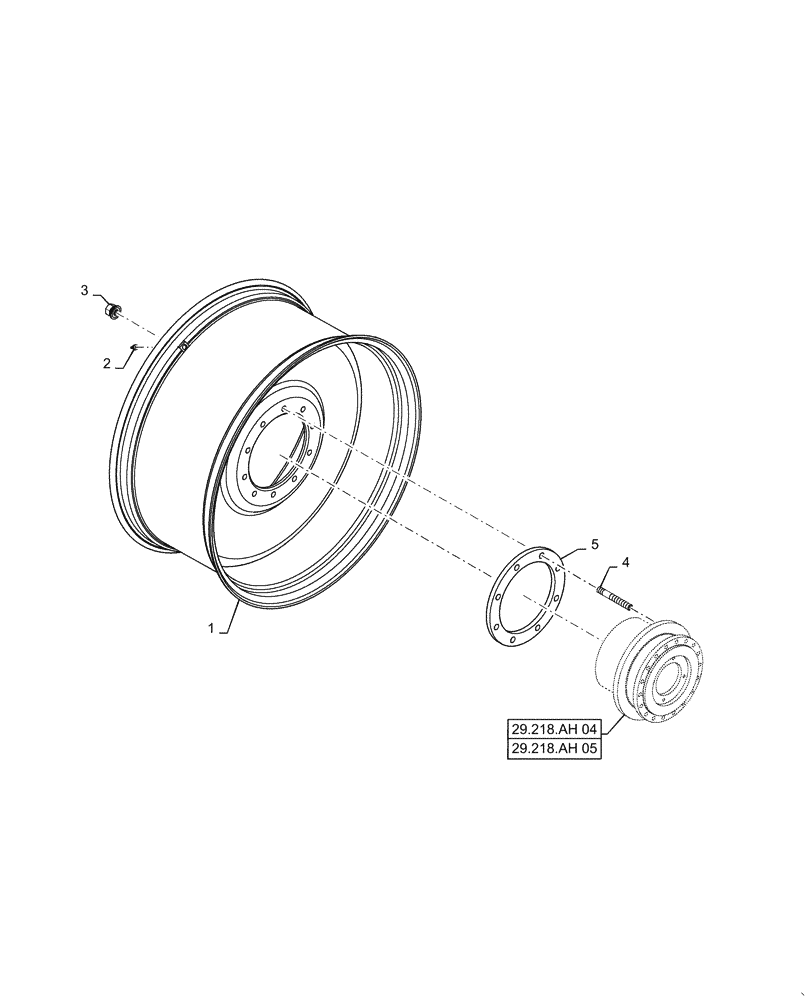

Схема запчастей Case IH PATRIOT 3240 - (44.511.AG[01]) - FRONT AND REAR WHEEL ASSY (44) - WHEELS
4
3
1
29.218.ah 05
5
2
29.218.ah 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN323842

WHEEL

18 x 38, 10 Hole, 520 / 85R 38, 650 / 35R 38, 650 / 65R 38

4шт.

1

BN323843

WHEEL

10 x 46, 10 Hole, 320 / 90R 46

4шт.

1

BN323634

WHEEL

12 x 46, 10 Hole, 380 / 85R 46, 380 / 90R 46

4шт.

2

362766A1

VALVE STEM

4шт.

3

BN315229

WHEEL NUT

Flange, Wheel 22MM

40шт.

4

87550045

STUD

Wheel

40шт.

5

BN306152

SPACER

Used On Rear Wheels Only

2шт.
