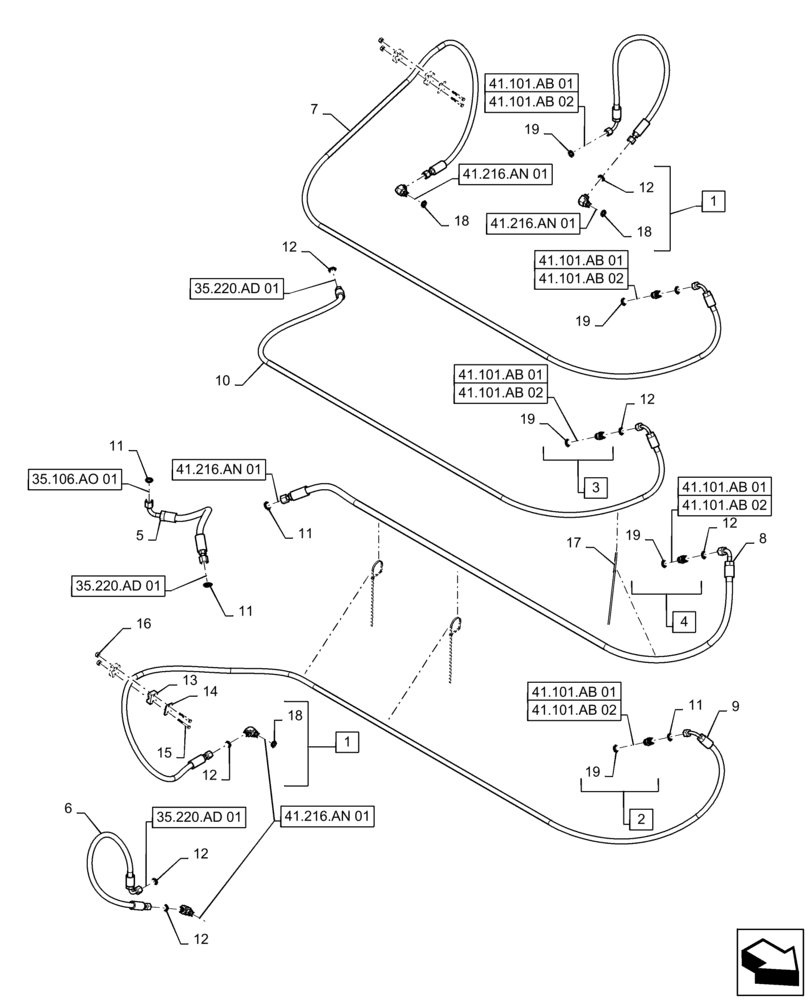

Запчасти Case IH PATRIOT 3240 (41.216.AU[01]) - STEERING LINES (41) - STEERING

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 12, 18

4шт.

2

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB, Incl 19

1шт.

3

BN311751

CHECK VALVE

11/16" -16 OFRS x 3/4" -16 ORB, Incl 19

1шт.

4

BN302647

FITTING

11/16" -16 OFRS x 3/4" -16 ORB, Incl 19

2шт.

5

BN307840

HOSE ASSY.

13/16 -16 Female ORFS Swivel Short Elbow x 13/16 -16 Female ORFS Swivel x 1/2" ID x 20" Long, Steel Line to Return Manifold

1шт.

6

BN307821

HOSE ASSY.

11/16 - 16 Female ORFS Swivel Short x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 33.5" Long, Steering Cylinder To Crossover Tube

2шт.

7

84587528

HOSE

11/16 - 16 Female ORFS Swivel Short x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 153" Long, Orbital To LH Steering Cyl

1шт.

8

87399572

HOSE

11/16 - 16 Female ORFS Swivel Short x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 135" Long, Orbital To RH Steering Cyl

1шт.

9

84587530

HOSE

13/16 -16 Female ORFS Swivel Short x 13/16 -16 Female ORFS Swivel Medium Elbow x 1/2" ID x 95" Long, Orbital To Crossover Tube

1шт.

10

84587532

HOSE

11/16 - 16 Female ORFS Swivel Short x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 110" Long, Orbital To Crossover Tube

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

13

BN315164

CLAMP

5/8" Tube

2шт.

14

BN29785

PLATE

Cover, Single, 1/2" Tube

2шт.

15

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 1 X 50, 8.8, DOR

4шт.

16

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

17

BN570007

STRAP

Black, 14-1/2" Long

4шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
