(35.911.AO[01]) - AUTOBOOM LINES

Запчасти Case IH PATRIOT 3240 (35.911.AO[01]) - AUTOBOOM LINES (35) - HYDRAULIC SYSTEMS

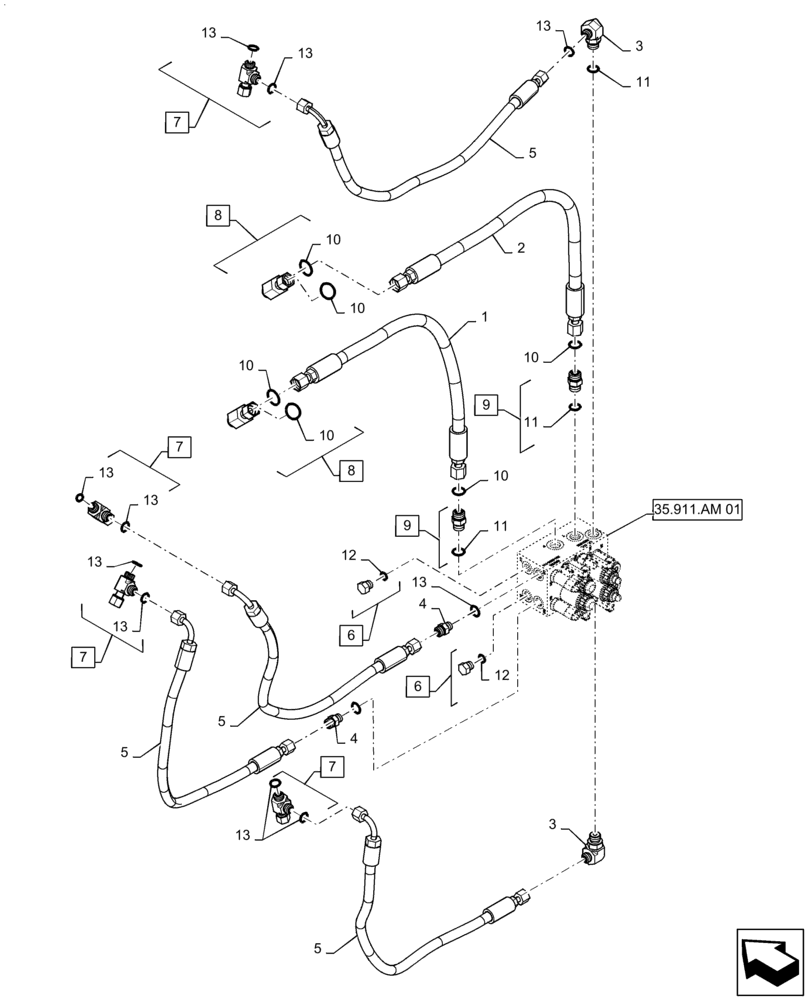

Схема запчастей Case IH PATRIOT 3240 - (35.911.AO[01]) - AUTOBOOM LINES (35) - HYDRAULIC SYSTEMS
3
12
4
11
4
5
9
7
10
7
10
13
5
13
13
8
7
11
10
6
5
13
13
3
11
1
7
10
10
2
8
9
13
13
10
13
6
5
12
35.911.am 01
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87487132

HOSE ASSY.

13/16 -16 ORFS Swivel x 13/16 -16 ORFS Swivel x 1/2" ID x 32" Long, Autoboom Valve to Pressure Port on Boom Valve Bank

1шт.

2

87487133

HOSE ASSY.

13/16 -16 ORFS Swivel x 13/16 -16 ORFS Swivel x 1/2" ID x 34" Long, Autoboom Valve to Tank Port on Boom Valve Bank

1шт.

3

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90°

2шт.

4

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

5

84164481

HOSE,9.53mm ID x 1066mm L, SAE 100R17

11/16 -16 ORFS Swivel Medium Elbow x 11/16 -16 ORFS Swivel x 3/8" ID x 42" Long, Autoboom Valve to Boom Valve Bank

4шт.

6

BN446048

PLUG

Hex, 9/16 - 18, Incl 12

2шт.

7

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel, Incl 13

4шт.

8

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel, Incl 10

2шт.

9

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB, Incl 11

2шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

8шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

4шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

2шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

16шт.
