Запчасти Case IH PATRIOT 3240 (35.911.AM[03]) - PRODUCT CONTROL VALVE (35) - HYDRAULIC SYSTEMS

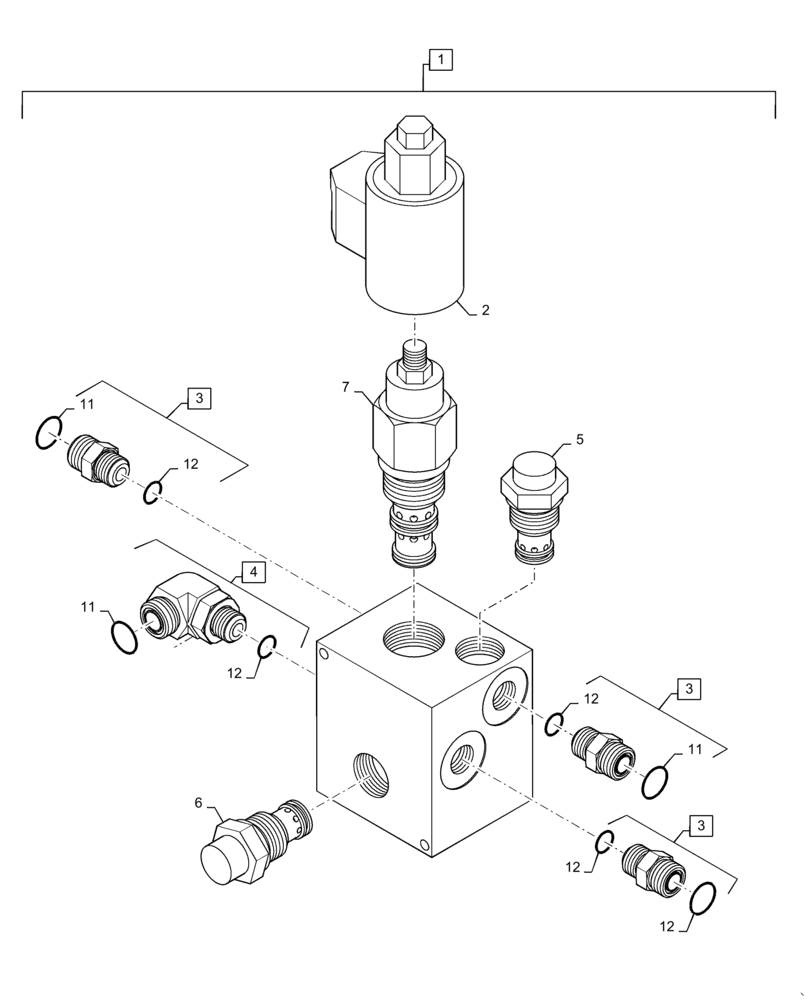

Схема запчастей Case IH PATRIOT 3240 - (35.911.AM[03]) - PRODUCT CONTROL VALVE (35) - HYDRAULIC SYSTEMS
5
1
4
7
12
11
6
12
12
11
2
12
11
3
12
3
3

Артикул

Название

Примечание

Количество

1

84333717

VALVE

Product Pump, Incl 2 - 10

1шт.

2

84423410

KIT

Control Valve Coil

1шт.

3

BN302655

FITTING

1 - 3/16" - 12 ORFS x 1 - 1/16" - 12 ORB, Incl 11 - 12

3шт.

4

BN302568

ELBOW

1 - 3/16" - 12 ORFS x 1 - 1/16" - 12 ORB, Incl 11 - 12

1шт.

5

84401228

CHECK VALVE

Poppet

1шт.

6

84401227

VALVE POPPET

Relief Valve, 3000 PSI

1шт.

7

84401225

FLOW CONTROL VALVE

Proportional, Cartride Only

1шт.

8

84401250

SEAL KIT

Check Valve, Incl in 5

1шт.

9

84401248

SEAL

Relief Valve, Incl in 6

1шт.

10

84401247

SEAL KIT

Flow Control Valve, Incl in 7

1шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1 - 3/16", ORFS

4шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1 - 1/16", ORB Ends

4шт.

Выбрано товаров: 12
