Запчасти Case IH PATRIOT 3240 (35.911.AM[02]) - PRODUCT CONTROL VALVE ASSY, 2" FILL (35) - HYDRAULIC SYSTEMS

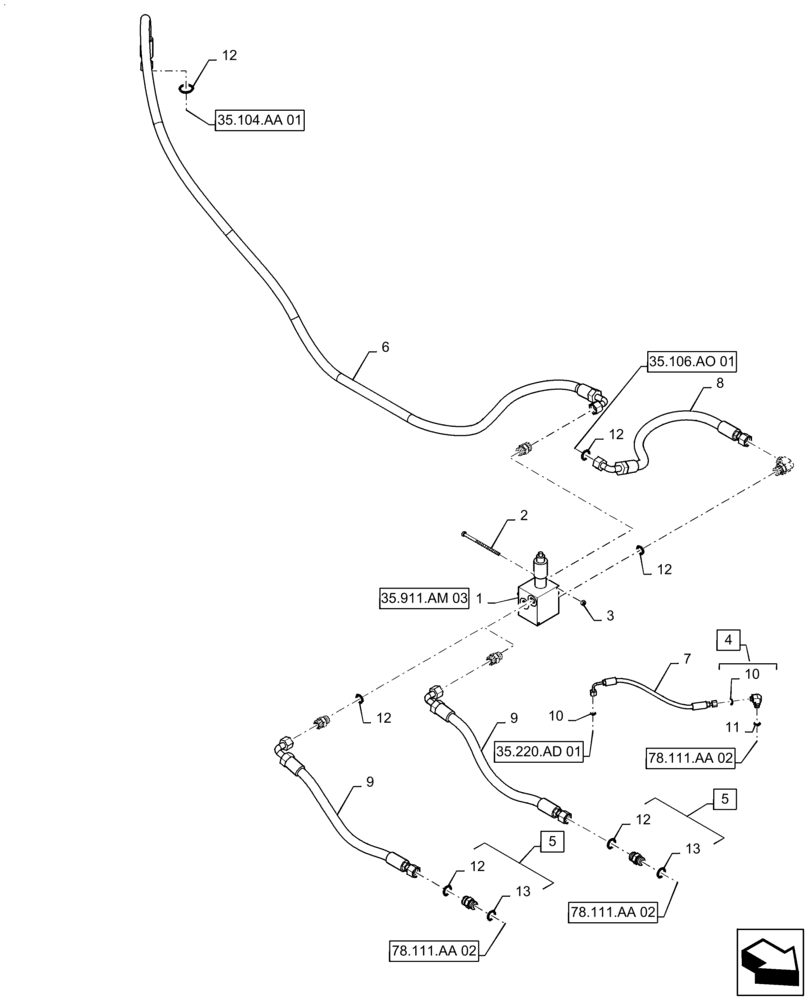

Схема запчастей Case IH PATRIOT 3240 - (35.911.AM[02]) - PRODUCT CONTROL VALVE ASSY, 2" FILL (35) - HYDRAULIC SYSTEMS
13
10
35.220.ad 01
10
7
5
4
78.111.aa 02
5
13
1
3
12
8
78.111.aa 02
9
12
11
6
2
35.911.am 03
12
35.106.ao 01
12
78.111.aa 02
12
12
9
35.104.aa 01

Артикул

Название

Примечание

Количество

1

84333717

VALVE

Product Pump, With Fittings

1шт.

See 35.911.AM 03 For Service Parts

1шт.

2

86980371

BOLT,Hex, M6 x 110mm, Cl 8.8

2шт.

3

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

4

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB, Incl 10, 11

1шт.

5

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Incl 12, 13

2шт.

6

87272444

HOSE

1-3/16"-12 ORFS Swivel Short Straight x 1-3/16"-12 ORFS Swivel Straight Short x 3/4" ID x 138" Long, Gear Pump To Control Valve

1шт.

7

BN322267

HOSE

9/16-18 ORFS Swivel Short Straight x 9/16-18 ORFS Swivel Medium Elbow x 1/4" ID x 67" Long, Product Pump To Steel Lines

1шт.

8

87271550

HOSE

1-3/16"-12 ORFS Swivel Short Straight x 1-3/16"-12 ORFS Swivel Short Elbow x 3/4" ID x 45" Long, Control Valve To Manifold

1шт.

9

87389187

HOSE

1-3/16"-12 ORFS Swivel Short Straight x 1-3/16"-12 ORFS Swivel Short Elbow x 3/4" ID x 32" Long, Control Valve To Product Pump

2шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

Выбрано товаров: 14
