(35.911.AM[01]) - AUTO-BOOM CONTROL VALVE ASSY

Запчасти Case IH PATRIOT 3240 (35.911.AM[01]) - AUTO-BOOM CONTROL VALVE ASSY (35) - HYDRAULIC SYSTEMS

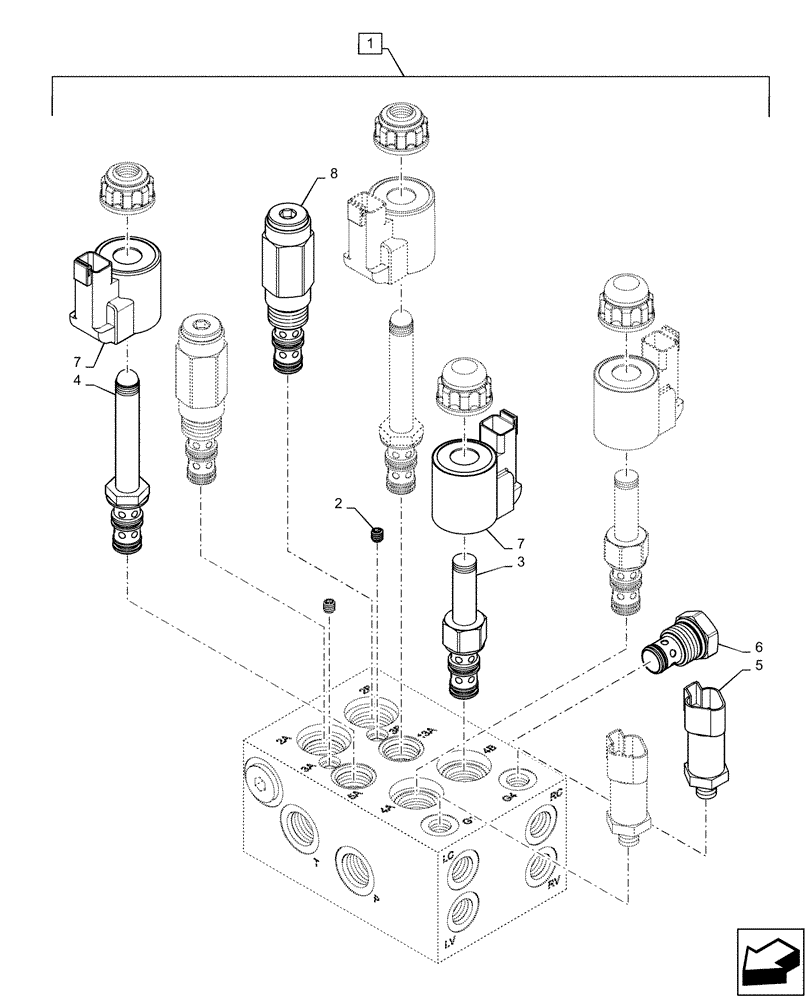

Схема запчастей Case IH PATRIOT 3240 - (35.911.AM[01]) - AUTO-BOOM CONTROL VALVE ASSY (35) - HYDRAULIC SYSTEMS
4
6
1
3
7
8
7
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84299098

HYDRAULIC VALVE

Autoboom, Complete, Incl 2 - 8

1шт.

2

84300103

ORIFICE

.062", 1/4" - 20 Threads

2шт.

3

84300100

CARTRIDGE

Double Blocker

2шт.

4

84300099

CARTRIDGE

Proportional, Reducing/Relieving

2шт.

5

87717374

SENDER UNIT

Pressure Transducer, 3 Pin

2шт.

6

84300098

CHECK VALVE

With Screen, 7/8" - 14

1шт.

7

84300102

COIL

12V

4шт.

8

84300101

PILOT VALVE

Sequence Valve

2шт.
