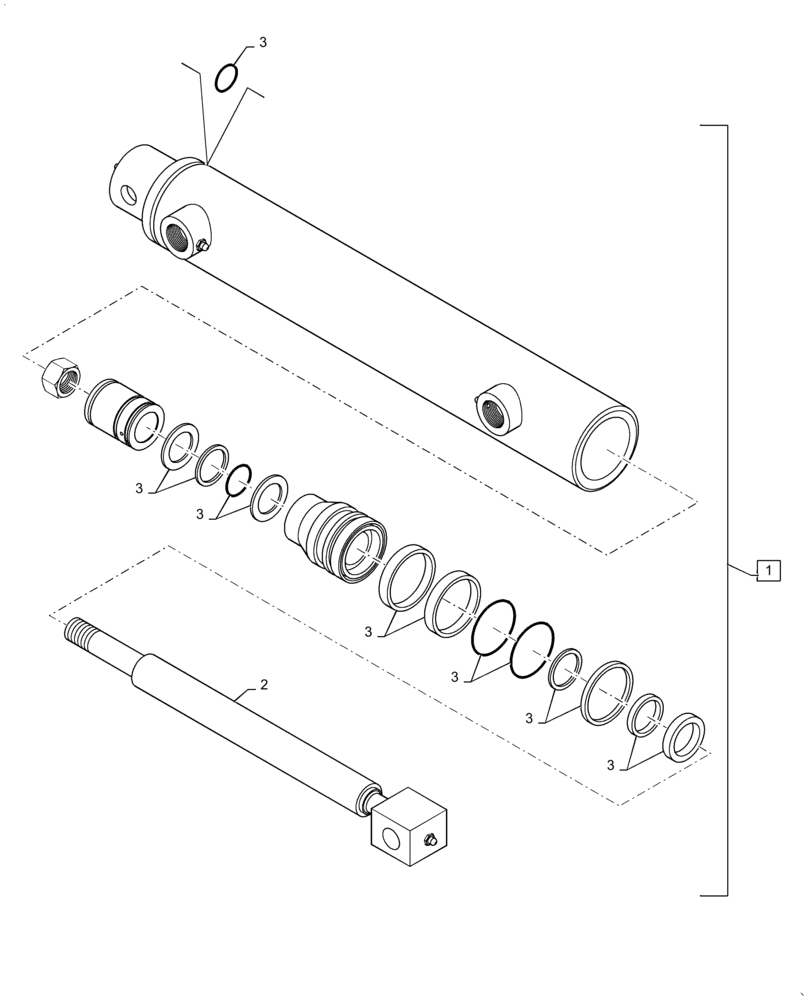

Запчасти Case IH PATRIOT 3240 (35.911.AD[05]) - OUTER BOOM FOLD CYLINDER, 90/100 BOOM (35) - HYDRAULIC SYSTEMS

1

87655640

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 511.05mm Stroke

Outer Boom Fold, 2 - 1/4" x 20.12" x 1 - 1/4", Complete, Incl 2

1шт.

2

87746976

ROD

Outer Boom Fold Cylinder

1шт.

3

87746977

SEAL KIT

Outer Boom Fold Cylinder, Used on Ref 1

1шт.
