(35.911.AD[01]) - PARALLEL LINK CYLINDER ASSY

Запчасти Case IH PATRIOT 3240 (35.911.AD[01]) - PARALLEL LINK CYLINDER ASSY (35) - HYDRAULIC SYSTEMS

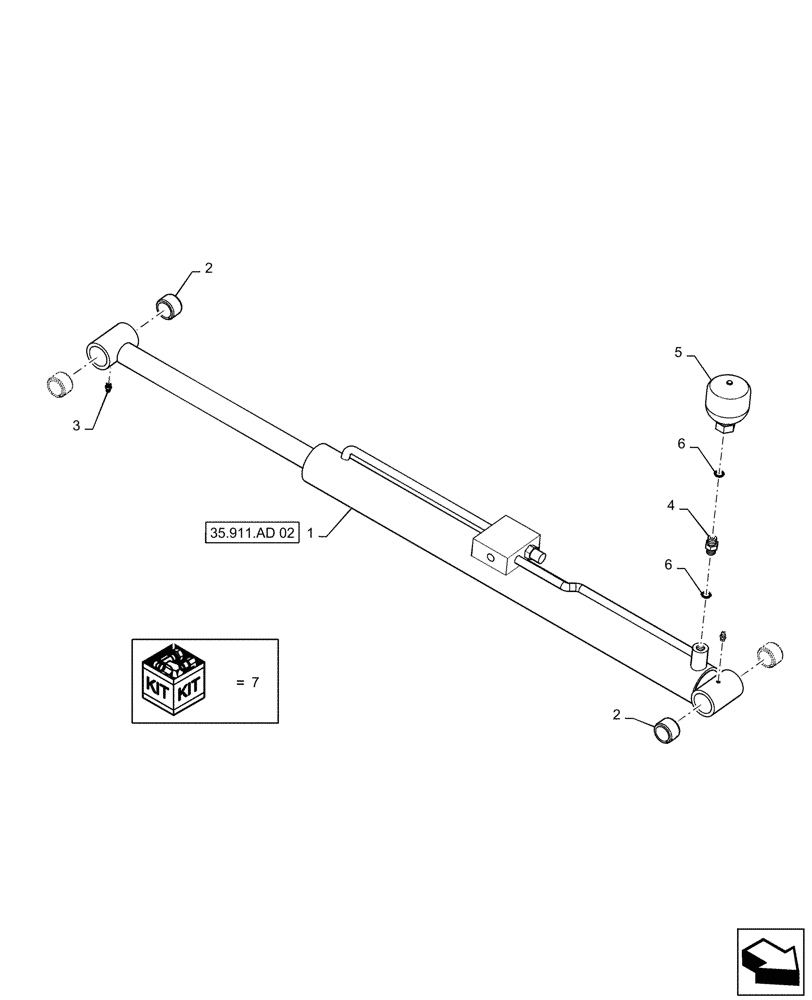

Схема запчастей Case IH PATRIOT 3240 - (35.911.AD[01]) - PARALLEL LINK CYLINDER ASSY (35) - HYDRAULIC SYSTEMS
4
3
5
7
35.911.ad 02
6
2
2
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87267726

CYLINDER,Double Acting, 38.1mm Rod, 723.9mm Stroke

Boom Height, 2.5" x 28.5" x 1.5"

1шт.

See Fig 35.911.AD 02 For Service Parts

1шт.

2

87271483

BUSHING

Spring

4шт.

3

BN69951

CAP

Grease

2шт.

4

BN313038

FITTING

9/16" - 18 ORB x 9/16" - 18 ORB Adaptor

1шт.

5

87267325

ACCUMULATOR

10 Cubic Inch. 825 PSI

1шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

7

87267726

CYLINDER,Double Acting, 38.1mm Rod, 723.9mm Stroke

1шт.
