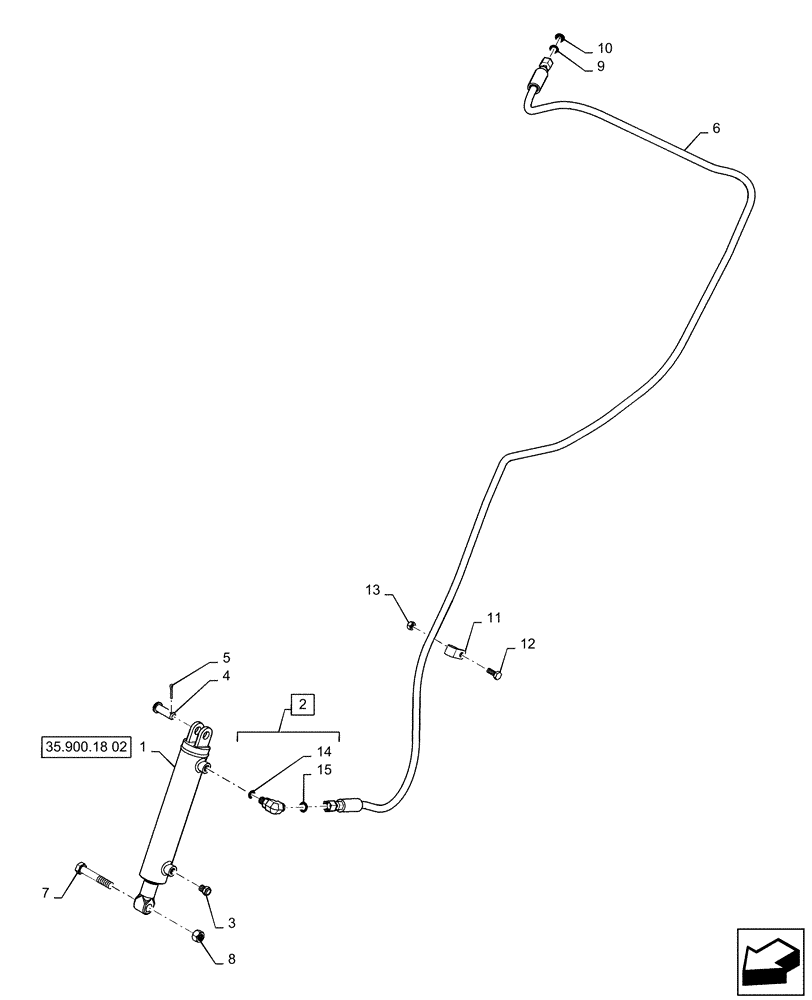

Запчасти Case IH PATRIOT 3240 (35.911.AC[01]) - LADDER HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

84330410

HYDRAULIC CYLINDER,Double Acting, 19.05mm Rod, 152.4mm Stroke

38.1mm Bore x 152.4mm x 19.05mm Rod, Complete

1шт.

See Figure 35.900.18 02 For Service Parts

1шт.

2

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, ZND Incl 14 - 15

1шт.

3

87267314

BREATHER

Sintered, -4

1шт.

4

439-1824

HEADED PIN,1/2" x 1 1/2", G2

1шт.

5

432-1216

COTTER PIN,3/16" x 1"

1шт.

6

87686433

HYDRAULIC HOSE

9/16" - 18 ORFS Swivel x 11/16" - 16 ORFS Swivel x 1/4" ID x 116" Long, Ladder Cylinder To Park Brake Steel Line

1шт.

7

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

BN313268

ORIFICE

.042, -6 Disk

1шт.

11

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

12

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

14

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

15

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
