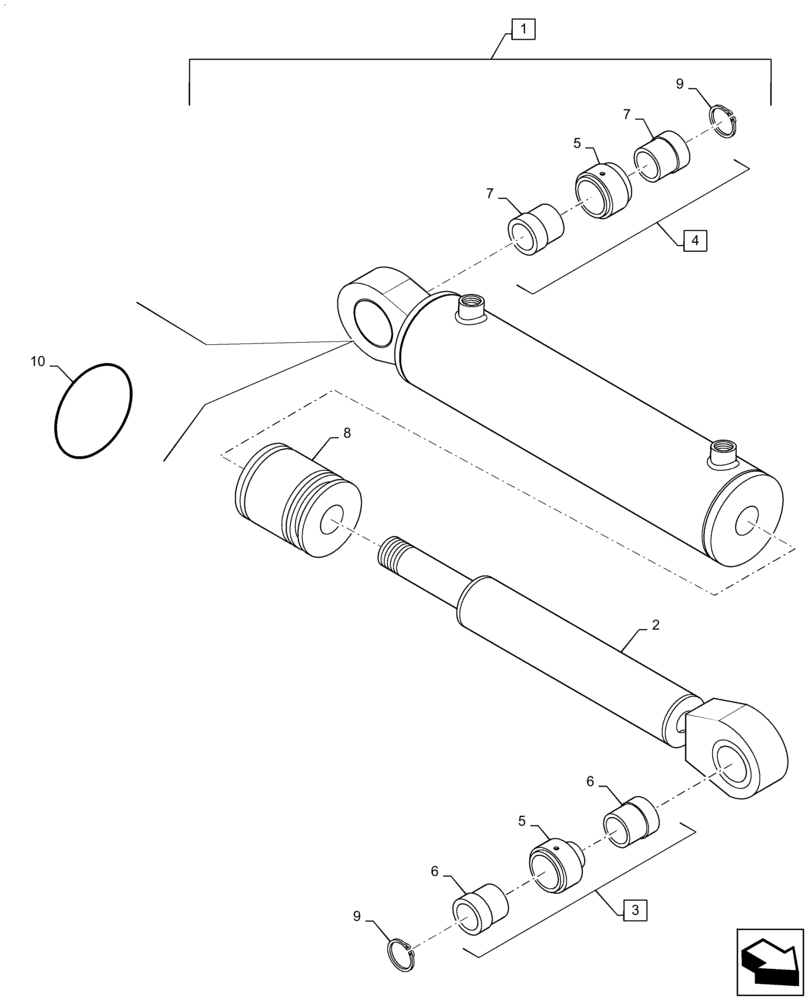

Запчасти Case IH PATRIOT 3240 (35.911.AB[02]) - BOOM PIVOT, INNER BOOM, FOLD CYLINDER, REAR, 90/100 (35) - HYDRAULIC SYSTEMS

1

87266460

CYLINDER,Double Acting, 34.92mm Rod, 549.4mm Stroke

Inner Boom Fold, Rear, 2.50" x 21.62" x 1.375", Complete, Incl 2 - 9

1шт.

1

87266460R

REMAN-HYD CYLINDER

Inner Boom Fold, Rear, 2.50" x 21.62" x 1.375", Complete, Incl 2 - 9

1шт.

1

87266460C

CORE-HYD CYLINDER

Return Number

1шт.

2

87267943

ROD

1шт.

3

87746972

SPHERICAL BEARING,20.09mm ID x 50.8mm OD x 51.82mm W

Rod End, Incl 5 - 6

1шт.

4

87746971

BUSHING,20.09mm ID x 50.8mm OD x 55.63mm W

Tube End, Incl 5 - 7

1шт.

5

87266307

SPHERICAL BEARING

Spherical

2шт.

6

87269921

SPACER

Rod End

2шт.

7

87269922

SPACER

Tube End

2шт.

8

84143345

JACK PISTON

1шт.

9

100-21200

SNAP RING,2", Int, #200

2шт.

10

87267940

SEAL KIT

Inner Boom Fold Rear Cylinder, Used on Ref 1

1шт.
