Запчасти Case IH PATRIOT 3240 (35.911.AB[01]) - BOOM PIVOT, INNER BOOM, FOLD CYLINDER, FRONT, 90/100 (35) - HYDRAULIC SYSTEMS

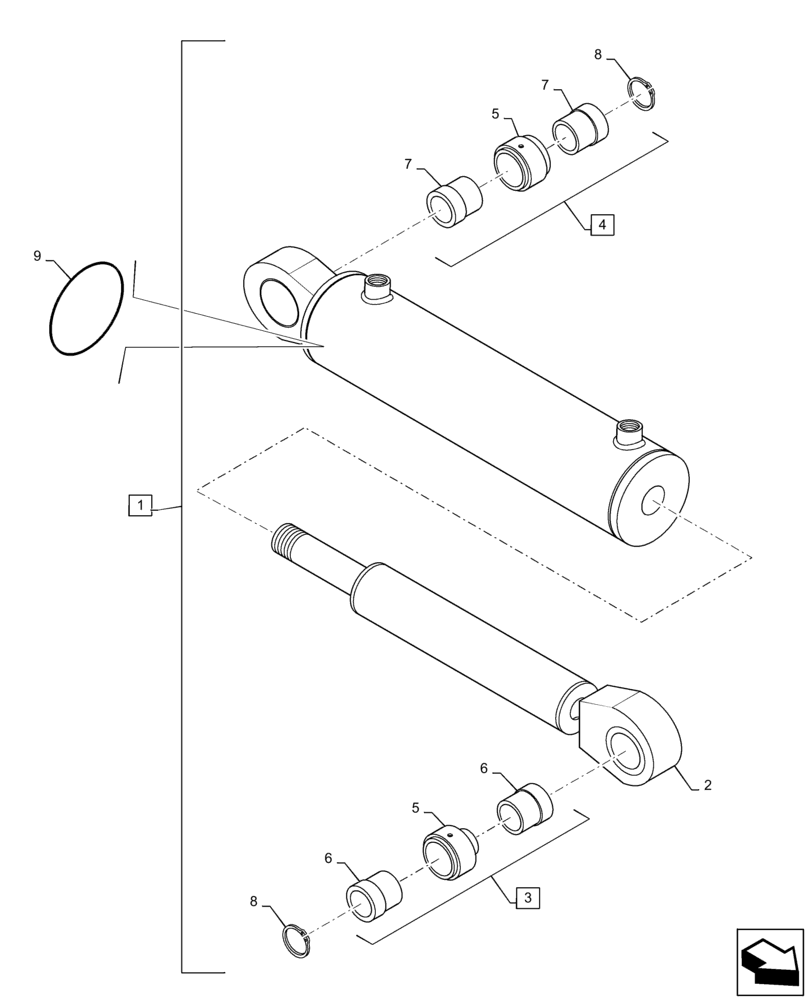

Схема запчастей Case IH PATRIOT 3240 - (35.911.AB[01]) - BOOM PIVOT, INNER BOOM, FOLD CYLINDER, FRONT, 90/100 (35) - HYDRAULIC SYSTEMS
5
6
9
8
8
5
3
7
6
4
7
2
1

Артикул

Название

Примечание

Количество

1

84188920

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 525.53mm Stroke

Inner Boom Fold, Front, 2.50" x 20.69" x 1.38", Complete Incl 2 - 8

1шт.

1

84188920R

REMAN-HYD CYLINDER

Inner Boom Fold, Front, 2.50" x 20.69" x 1.38", Complete Incl 2 - 8

1шт.

1

84188920C

CORE-HYD CYLINDER

Return Number

1шт.

2

84235165

ROD

1шт.

3

87746972

SPHERICAL BEARING,20.09mm ID x 50.8mm OD x 51.82mm W

Rod End, Incl 5 - 6

1шт.

4

87746971

BUSHING,20.09mm ID x 50.8mm OD x 55.63mm W

Tube End, Incl 5 - 7

1шт.

5

87266307

SPHERICAL BEARING

Spherical

2шт.

6

87269921

SPACER

Rod End

2шт.

7

87269922

SPACER

Tube End

2шт.

8

100-21200

SNAP RING,2", Int, #200

2шт.

9

87746975

SEAL KIT

Inner Boom Fold Front Cylinder, Used on Ref 1

1шт.

Выбрано товаров: 11
