(35.735.AA[02]) - AXLE CYLINDER MOUNTING PARTS

Запчасти Case IH PATRIOT 3240 (35.735.AA[02]) - AXLE CYLINDER MOUNTING PARTS (35) - HYDRAULIC SYSTEMS

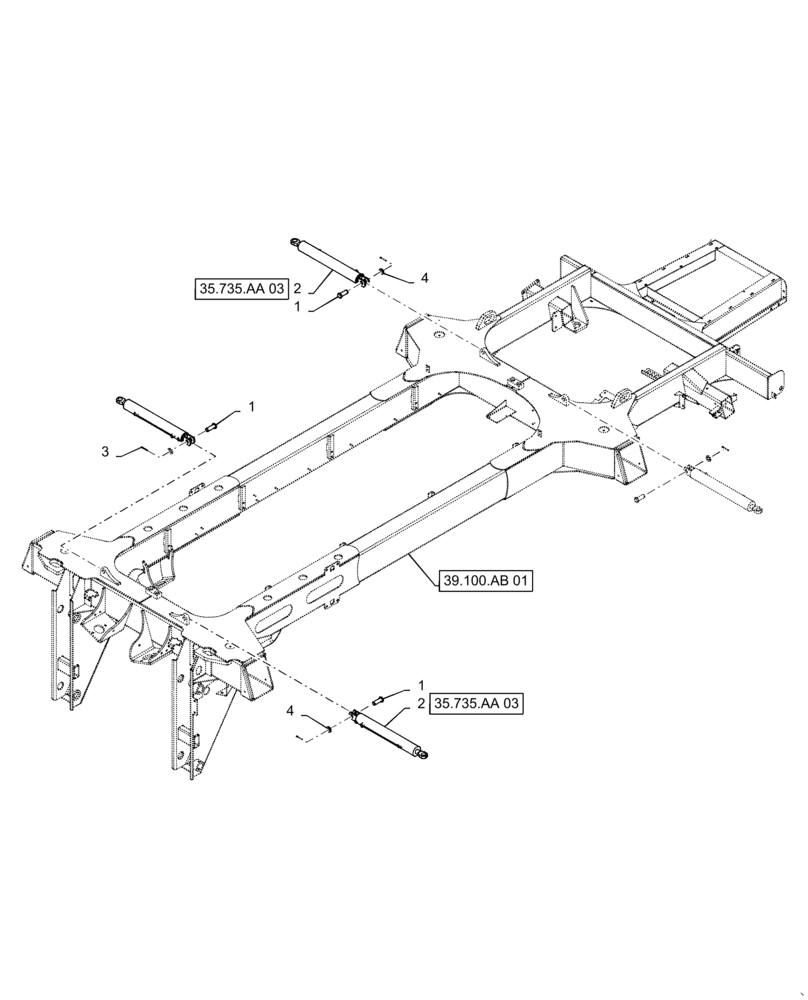

Схема запчастей Case IH PATRIOT 3240 - (35.735.AA[02]) - AXLE CYLINDER MOUNTING PARTS (35) - HYDRAULIC SYSTEMS
35.735.aa 03
1
4
4
3
35.735.aa 03
39.100.ab 01
1
1
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86632567

HEADED PIN,30.14mm OD x 66.55mm L

4шт.

2

87267921

CYLINDER,Double Acting, 31.75mm Rod, 469.9mm Stroke

2.50 x 18.5 x 1.25, Axle Width Cylinder, Complete

4шт.

See 35.735.AA 03 For Service Parts

1шт.

3

BN50601

PIN, SPLIT (COTTER)

3/16 X 2""

4шт.

4

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

4шт.
