Запчасти Case IH PATRIOT 3240 (35.735.AA[01]) - AXLE ADJUSTMENT LINES (35) - HYDRAULIC SYSTEMS

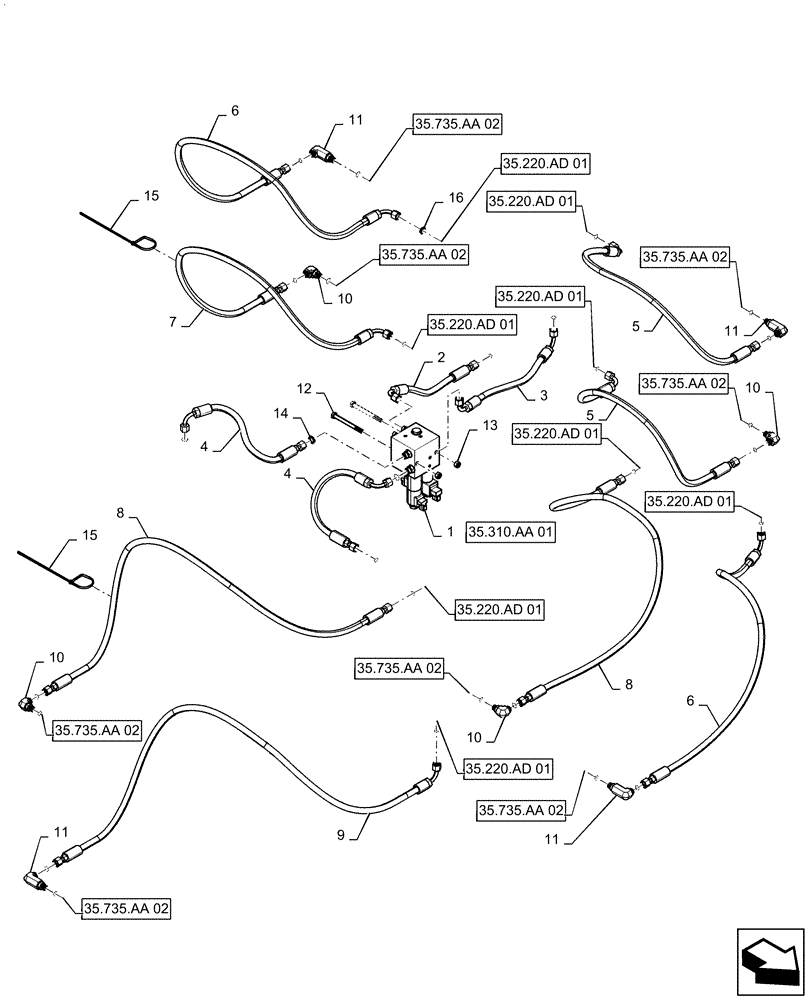

Схема запчастей Case IH PATRIOT 3240 - (35.735.AA[01]) - AXLE ADJUSTMENT LINES (35) - HYDRAULIC SYSTEMS
35.735.aa 02
35.220.ad 01
5
15
8
12
1
8
4
35.220.ad 01
4
35.220.ad 01
35.220.ad 01
35.310.aa 01
16
35.220.ad 01
3
35.735.aa 02
10
13
35.735.aa 02
9
35.220.ad 01
7
35.735.aa 02
35.735.aa 02
15
2
11
14
11
10
35.220.ad 01
10
35.220.ad 01
5
35.735.aa 02
6
35.735.aa 02
10
6
11
35.735.aa 02
11

Артикул

Название

Примечание

Количество

1

87393150

CONTROL VALVE

Axle Adjustment And Boom Height

1шт.

See 35.310.AA 08 For Service Parts

1шт.

2

84583869

HOSE

11/16 -16 Female ORFS Swivel Short x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 17" Long, 2 Bank Valve To Steel Lines

1шт.

3

84583870

HOSE

11/16 -16 Female ORFS Swivel Medium Elbow x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 19.5" Long, 2 Bank Valve To Steel Lines

1шт.

4

BN307824

HOSE ASSY.

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 19.5", 2 Bank Valve To Return / Pressure Manifolds

2шт.

5

BN322525

HOSE ASSY.

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 48", Steel Line to Front LH Cylinder

2шт.

6

BN317622

HOSE ASSY.,9.53mm ID x 1498.6mm L, SAE 100R17

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 59", Steel Line to RH Front Cylinder, Rod End

2шт.

7

BN322523

HYDRAULIC HOSE

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 55", Steel Line to LH Rear Cylinder, Base End

1шт.

8

BN307873

HOSE

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel x 3/8" ID x 61", Steel Line to RH Cylinder, Base End

2шт.

9

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 64", Steel Line to RH Rear Cylinder, Rod End

1шт.

10

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

11

BN302419

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Long Elbow

4шт.

12

86980411

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

16шт.

15

BN570007

STRAP

Black, 14 -1/2" Long

2шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

8шт.

Выбрано товаров: 17
