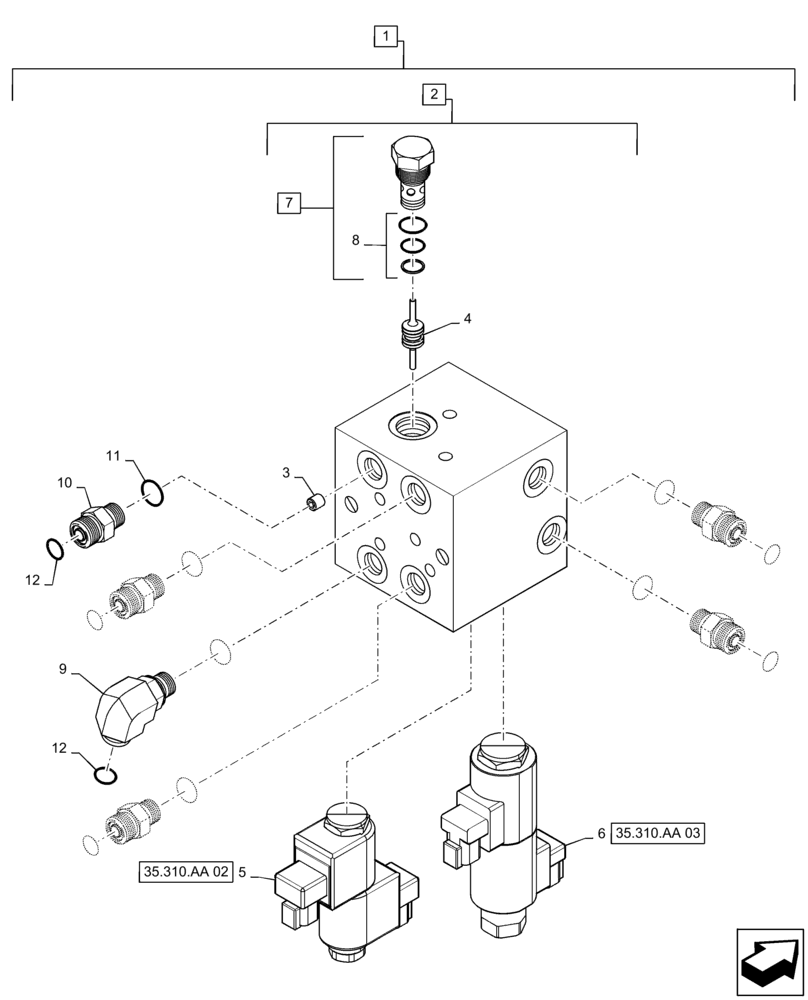

Запчасти Case IH PATRIOT 3240 (35.310.AA[01]) - AXLE ADJUSTING VALVE (35) - HYDRAULIC SYSTEMS

1

87393150

CONTROL VALVE

2 - Bank Valve With Fittings, Axle Adjust And Boom Height, Incl 2, 9 - 12

1шт.

2

87393142

CONTROL VALVE

2 - Bank Without Fittings, Axle Adjust And Boom Height, Incl 3 - 7

1шт.

3

87758323

ORIFICE

.039"

1шт.

4

87758337

PISTON

Valve Bank

1шт.

5

87758319

SOLENOID VALVE

With Coil, Axle Adjust

1шт.

See 35.310.AA 02 For Service Parts

1шт.

6

84198497

SOLENOID VALVE

With Coil, Boom Height

1шт.

See 35.310.AA 03 For Service Parts

1шт.

7

87758336

VALVE

Check, Incl 8

2шт.

8

87472226

SEAL KIT

Check Valve, Incl in 7

1шт.

9

BN302553

ELBOW

11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

10

BN302646

FITTING

11/16" - 16 ORFS x 9/16" - 18 ORB

5шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

6шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

6шт.
