Запчасти Case IH PATRIOT 3240 (35.300.AB[01]) - OIL COOLER AND LINES (35) - HYDRAULIC SYSTEMS

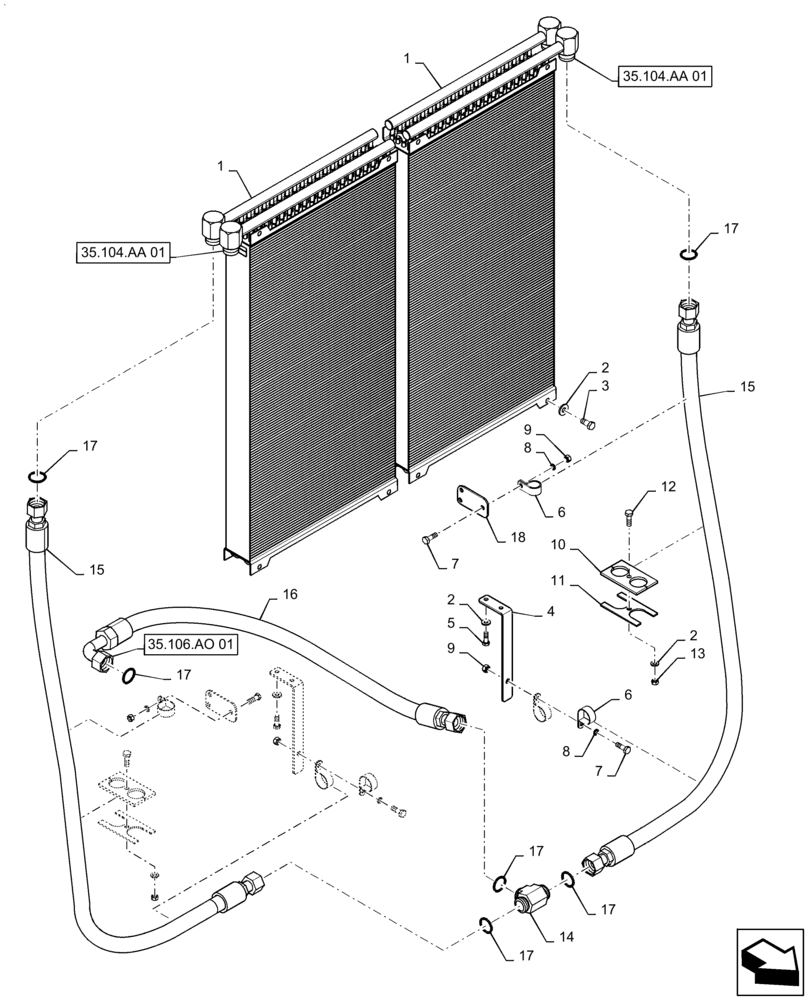

Схема запчастей Case IH PATRIOT 3240 - (35.300.AB[01]) - OIL COOLER AND LINES (35) - HYDRAULIC SYSTEMS
5
8
4
14
7
17
35.106.ao 01
10
35.104.aa 01
2
17
6
6
35.104.aa 01
17
15
3
17
15
16
17
17
2
9
18
13
9
11
8
1
12
7
2
1

Артикул

Название

Примечание

Количество

1

84427916

OIL COOLER

Hydraulic

2шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

22шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

4

84481443

SUPPORT

Hose

2шт.

5

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

6

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

8шт.

7

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

10

84603696

SEAL

Hose

2шт.

11

84603693

PLATE

Seal

2шт.

12

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

14

84485115

UNION TEE

1-7/16-12, ORFS

1шт.

15

84584393

HOSE

1-7/16-12 Female ORFS Swivel Short x 1-7/16-12 Female ORFS Swivel Short x 1" ID x 63" Long, From Cooler To Tee

2шт.

16

87270612

HOSE,25.4mm ID x 1118mm L

1-7/16-12 Female ORFS Swivel Short x 1-7/16-12 Female ORFS Swivel Short Elbow x 1" ID x 44" Long, From Tee To Return Manifold

1шт.

17

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

18

47449809

SUPPORT

Hose

2шт.

Выбрано товаров: 18
