Запчасти Case IH PATRIOT 3240 (35.220.AD[01]) - STEEL HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

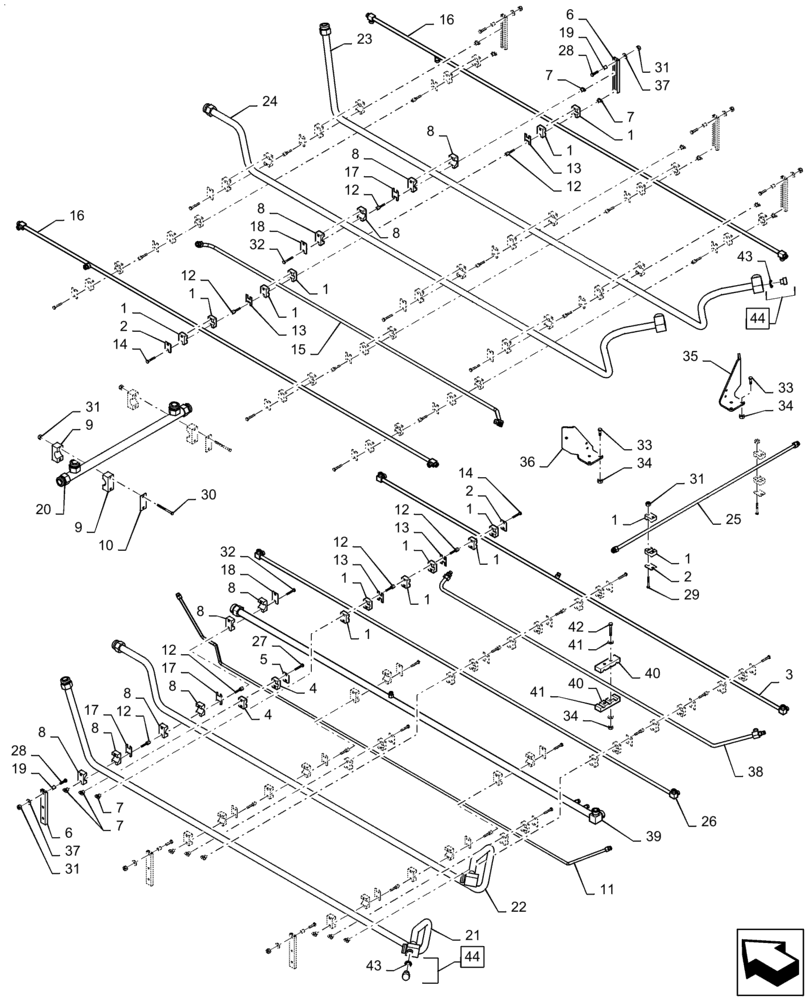

Схема запчастей Case IH PATRIOT 3240 - (35.220.AD[01]) - STEEL HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS
1
12
33
9
14
2
8
44
2
31
4
1
17
13
43
13
16
1
12
28
13
18
32
39
8
1
1
8
19
1
1
1
25
1
12
12
27
21
7
36
24
31
7
40
41
44
12
14
13
16
7
3
26
30
12
29
1
31
23
1
37
8
9
32
15
10
5
28
1
1
12
8
37
19
20
41
38
35
34
34
42
2
40
33
17
6
4
7
6
22
8
34
8
8
1
11
31
43
8
17
18
8

Артикул

Название

Примечание

Количество

1

BN29783

CLAMP

Single, 1/2" Tube

23шт.

2

BN29785

PLATE

Cover, Single, 1/2" Tube

9шт.

3

BN306003

TUBE

Motor Servo Control

1шт.

4

BN307078

CLAMP

Pair, 3/8" Tube

3шт.

5

BN307079

PLATE

Clamp, 3/8" Tube

3шт.

6

BN313247

RAIL

C-Rail

7шт.

7

BN313262

NUT

1/4" x 20

34шт.

8

BN307080

CLAMP

Pair, 1" Tube

17шт.

9

BN307082

CLAMP

Pair, 1-1/4" Tube

2шт.

10

BN309483

PLATE

Cover, Single

2шт.

11

BN309602

BRAKE LINE

Return

1шт.

12

BN313261

BOLT

Stacking 1/4"-20

48шт.

13

BN313264

PLATE

Safety, 1/2" Tube

14шт.

14

87342608

BOLT

1/4 x 1-1/2, DOR

14шт.

15

BN305996

TUBE

Dynamic Brake, Pressure

1шт.

16

BN306004

TUBE

Axle Adjust

2шт.

17

BN313265

PLATE

Safety

10шт.

18

BN307081

PLATE

Clamp

7шт.

19

BN316101

SPACER

C-Rail, Hydraulic Tube

7шт.

20

BN319659

TUBE

Return Manifold

1шт.

21

84584186

TUBE

Drive Pressure "A"

1шт.

22

84584190

TUBE

Drive Pressure "B"

1шт.

23

84584192

TUBE

Drive Pressure "A"

1шт.

24

84584194

TUBE

Drive Pressure "B"

1шт.

25

BN324491

TUBE

Hydraulic Line

1шт.

26

BN324574

TUBE

Park Brake

1шт.

27

87342607

BOLT

1/4 x 1-1/4, DOR

6шт.

28

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

7шт.

29

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 x 50, DOR

4шт.

30

86980369

BOLT,Hex, M6 x 80, Cl 8.8

4шт.

31

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

15шт.

32

87342609

BOLT

1/4 x 1-3/4, DOR

14шт.

33

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

34

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

35

87271119

SUPPORT

LH Support

1шт.

36

87271120

SUPPORT

RH Support

1шт.

37

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

7шт.

38

BN305997

TUBE

Steering Return

1шт.

39

84584183

TUBE

Case Drain

1шт.

40

47729037

CLAMP

3 Hole Hydraulic

1шт.

41

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

42

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

43

9672438

PLUG,7/16" - 20 ORB

Used When Not Equipped With Active Suspension, Incl 44

2шт.

44

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

Выбрано товаров: 44
