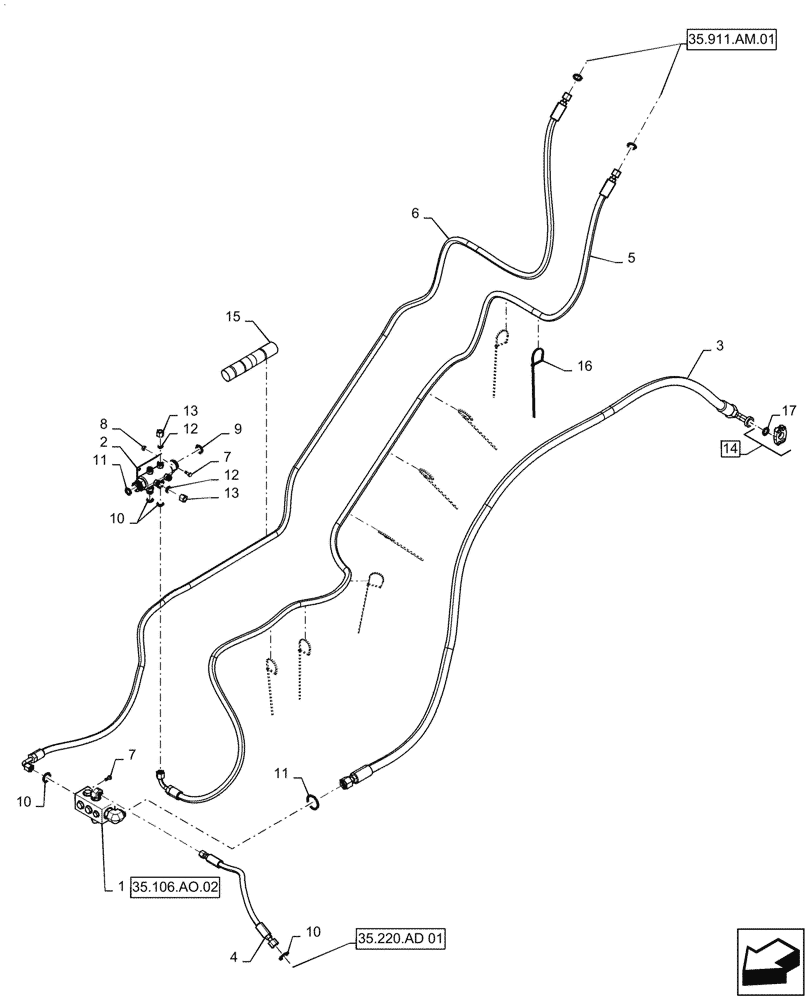

Запчасти Case IH PATRIOT 3240 (35.106.AO[01]) - HYDRAULIC MANIFOLD AND LINES (35) - HYDRAULIC SYSTEMS

1

BN323902

MANIFOLD

Pressure Compensating

1шт.

See 35.106.AO 02 For Service Parts

1шт.

2

BN307639

MANIFOLD

Hydraulic Return

1шт.

3

48025003

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel x Code 61 Flange Short Elbow x 3/4" ID x 91" Long, Pressure Compensated Pump to Pressure Manifold

1шт.

4

84584339

HOSE

11/16" -16 ORFS Swivel Short Straight x 13/16" -16 ORFS Swivel Short Straight x 3/8" ID x 24-1/2" Long, Pressure Manifold to Steel Lines

1шт.

5

BN309867

HOSE

13/16" -16 ORFS Swivel Meduim Elbow x 13/16" -16 ORFS Swivel x 1/2" ID x 142" Long, Pressure Manifold to Boom Control Valve

1шт.

6

86986371

HOSE

13/16" -16 ORFS Swivel Meduim Elbow x 13/16" -16 ORFS Swivel x 1/2" ID x 154" Long, Boom Control Valve to Return Manifold

1шт.

7

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

8

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

BN305426

CAP

-6 FFOR

1шт.

14

BN316600

KIT

Code 61, 3/4 Split Flange, Incl 17

1шт.

15

342108A1

HOSE PROTECTION

Bulk, Cut To Length Required

1шт.

16

BN570007

STRAP

14-1/2"

8шт.

17

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

For Ref 14

1шт.
