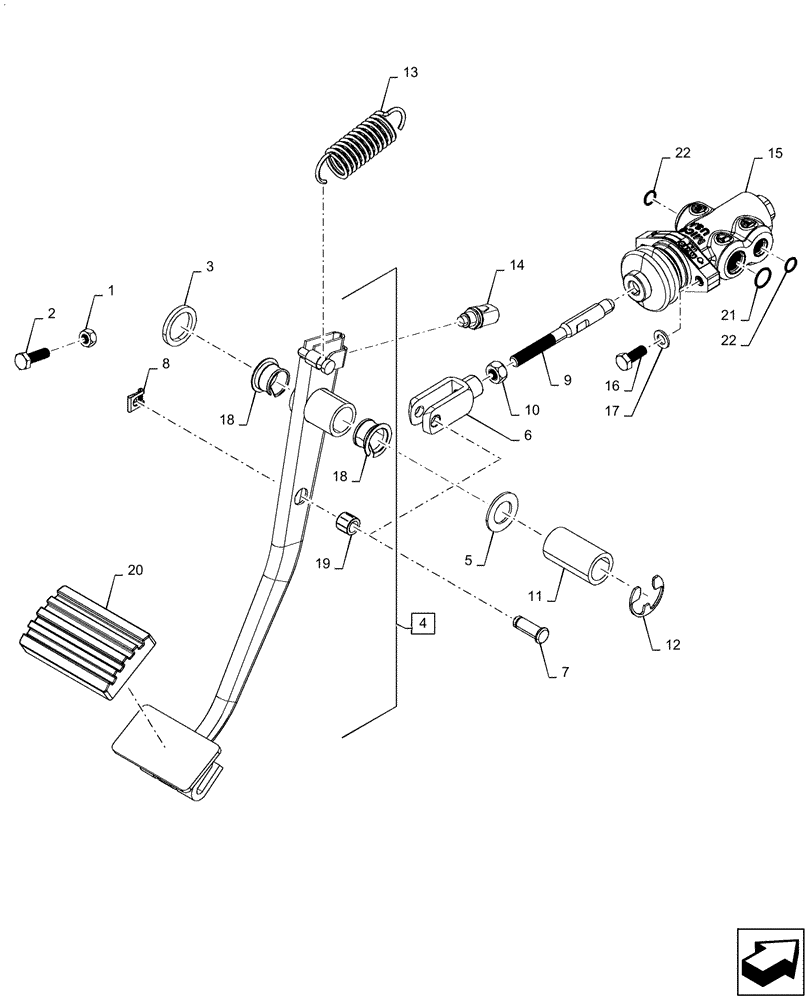

Запчасти Case IH PATRIOT 3240 (33.202.BN[01]) - SERVICE BRAKE (33) - BRAKES & CONTROLS

1

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

3

258242A1

WASHER,26mm ID x 35mm OD x 4mm Thk

1шт.

4

87269649

PEDAL

Complete, Incl 18 - 20

1шт.

5

T102217

WASHER,20.1mm ID x 35mm OD x 2mm Thk

POM

1шт.

6

236323A1

CLEVIS

Brake

1шт.

7

192869A1

CLEVIS PIN

1шт.

8

193182A1

CLIP

Safety

1шт.

9

87377626

ROD

Brake, Threaded

1шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

11

87269656

SPACER,20.60 mm ID x 28.60 mm OD x 52 mm L

1шт.

12

800-3120

CIRCLIP,M20

1шт.

13

236504A3

SPRING

Brake

1шт.

14

279265A2

SWITCH

Differential Lock, Brake

1шт.

15

380930A1

VALVE

Brake

1шт.

16

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

18

1990753C1

PLASTIC RING

Upper Pedal Bushing

1шт.

19

298715A1

BUSHING,10mm ID x 15mm OD x 13mm L

Lower Pedal

1шт.

20

1999381C1

RUBBER PAD

Pedal

1шт.

21

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.
