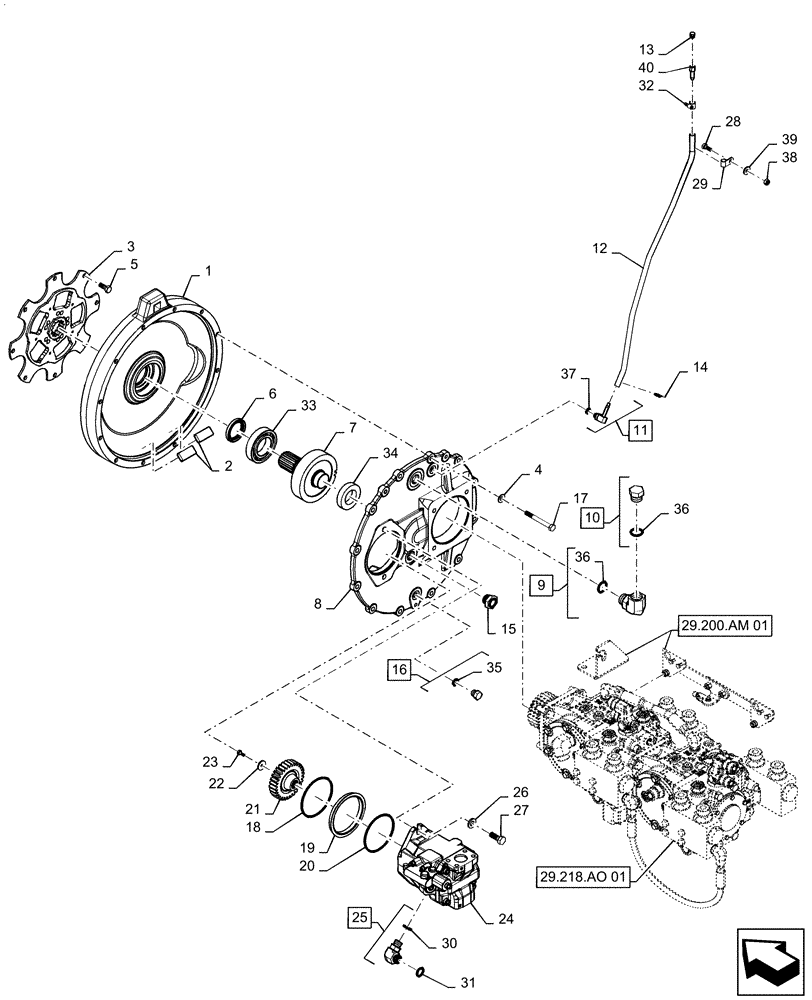

Запчасти Case IH PATRIOT 2250 (29.202.AJ[01]) - HYDROSTATIC PUMP DRIVE, AND PRESSURE COMP PUMP (29) - HYDROSTATIC DRIVE

1

87643062

GEARBOX

Splitter Housing

1шт.

2

9840491

MAGNET

Ceramic

2шт.

3

87652184

DAMPER

Flywheel

1шт.

4

84603129

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

M10 x 22mm, DOR

12шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

6

86623595

RUBBER SEAL,45mm ID x 62mm OD x 8mm Thk

Oil

1шт.

7

87658697

GEAR SHAFT

39T

1шт.

8

47425915

COVER

Gearbox

1шт.

9

87272659

HYD CONNECTOR

1-1/16" -12, Male x 1-1/16"-12 Female, Elbow, Incl 36

1шт.

10

BN54270

PLUG

Hex, 1-1/16" -12, Incl 36

1шт.

11

84177575

ADAPTER

Elbow, 1/4" Hose Barb x 7/16" -20, Incl 37

1шт.

12

47872422

HOSE

Breather, 1/4" ID x 1/2" OD x 30 3/8" Long

1шт.

13

854071

BREATHER

1/8" -27 NPT

1шт.

14

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

15

87270243

GAUGE

Sight

1шт.

16

BN446048

PLUG

Hex, 9/16 - 18, Incl 35

1шт.

17

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

12шт.

18

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

19

84479774

RING

Adapter

1шт.

20

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

21

84249984

GEAR

30 Tooth, Driven

1шт.

22

87317427

WASHER,0.28" ID x 1" OD x 0.11" Thk

1шт.

23

84340186

BOLT

1/4" -20

1шт.

24

BN316492

PUMP,28 CC

Pressure Compensated

1шт.

25

BN302558

ELBOW

-8 ORFS x 3/4 -16 ORB, Incl 30, 31

1шт.

26

84601884

WASHER

1/2" ID x 1" OD, DOR

2шт.

27

87342793

BOLT

1/2" -13 x 1-1/4"

2шт.

28

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

29

515-22111

CLAMP,7/16", Insul, 5/16" Bolt

1шт.

30

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

ORFS, Included with 25

1шт.

31

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

ORB, Included with 25

1шт.

32

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

33

84156145

BALL BEARING,50mm ID x 90mm OD x 20mm W

Hardened

1шт.

34

84156144

BALL BEARING,40mm ID x 68mm OD x 15mm W

Hardened

1шт.

35

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Included with 16

1шт.

36

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Included with 9, 10

2шт.

37

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Included with 11

1шт.

38

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

39

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

40

217-191

FITTING,1/4" Hose Barb x 1/8" Female NPTF

Breather

1шт.
