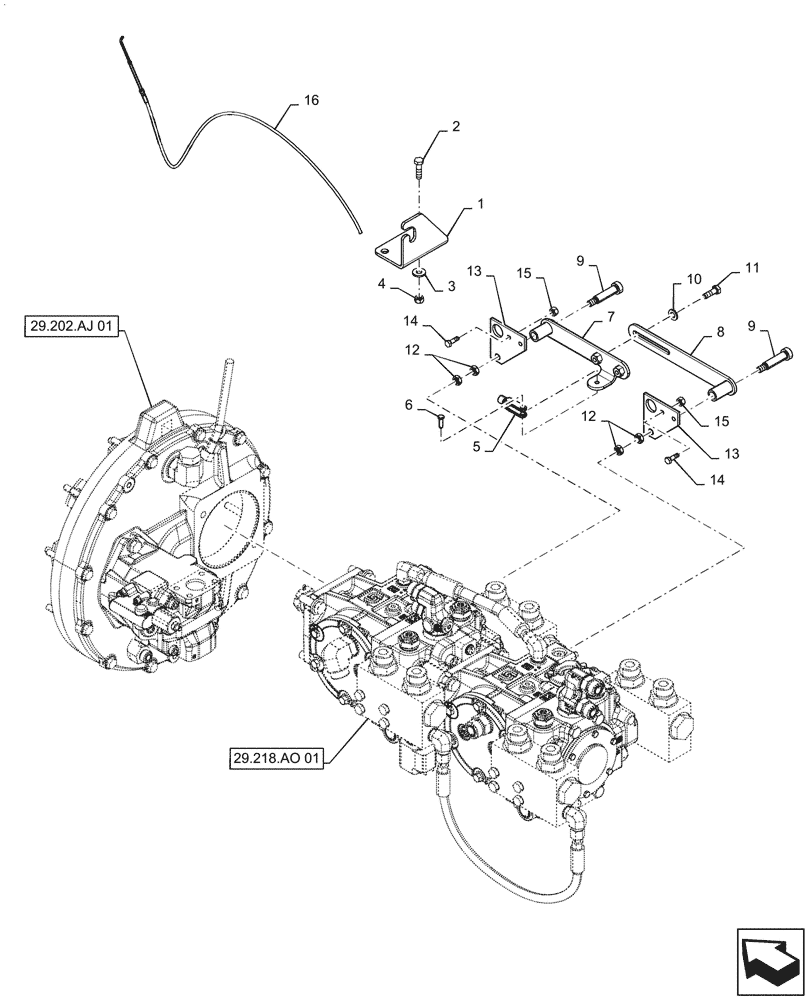

Запчасти Case IH PATRIOT 2250 (29.200.AM[01]) - HYDROSTATIC PUMP, CONTROL LINKAGE (29) - HYDROSTATIC DRIVE

1

47920571

MOUNT

Propel Cable

1шт.

2

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

5

84578995

CLEVIS

Propel Cable

1шт.

6

728-620

CLEVIS PIN,M6 x 20

1шт.

7

47669543

LINKAGE

Hydro

1шт.

8

84580747

PLATE

Hydro Linkage

1шт.

9

47385293

SCREW

Hex Socket, 3/8" -16, DOR

2шт.

10

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

11

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

87343875

JAM NUT

3/8" -16, DOR

4шт.

13

BN25901

BRACKET

Hydro Linkage

2шт.

14

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

15

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

16

47374622

CABLE

Propel

1шт.
