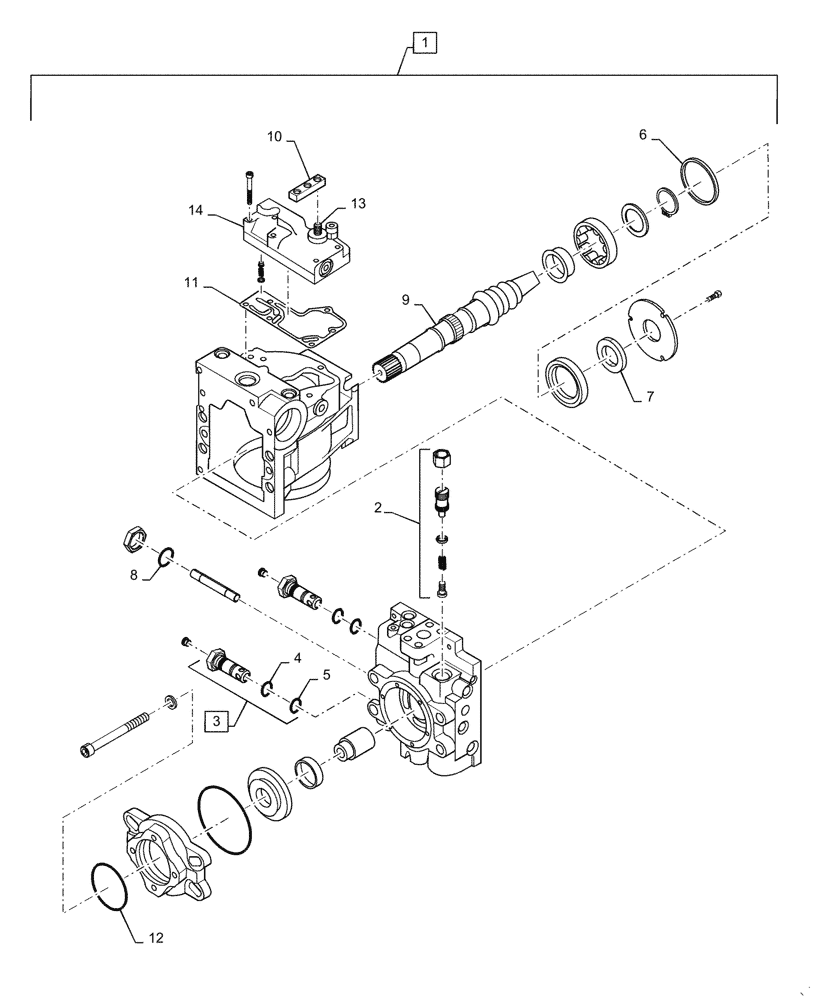

Запчасти Case IH PATRIOT 2250 (29.100.AC[01]) - HYDROSTATIC PUMP, FRONT, 55CC (29) - HYDROSTATIC DRIVE

1

47425033

PUMP

Assy, Front, Incl 2 - 14

1шт.

2

9803123

KIT

Charge Relief

2шт.

3

BN65540

VALVE

Pressure, Multi-Function, Incl 4, 5

4шт.

4

514098

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

Valve Upper

4шт.

5

BN65542

O-RING

Valve Lower

4шт.

6

BN68559

RING

Shaft

1шт.

7

47794713

SEAL

Lip, Shaft

1шт.

8

BN68470

O-RING

Filter Head, 90 Series Pump

2шт.

9

47794712

SHAFT

Tapered

1шт.

10

BN67479

HANDLE

90 Series Pump

2шт.

11

BN68558

GASKET

Control Body

2шт.

12

70934882

O-RING,0.103" Thk x 4.737" ID, -158, Cl 7, 75 Duro

1шт.

13

236535

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

Control Shaft

2шт.

14

BN68561

CONTROL

Complete

2шт.
