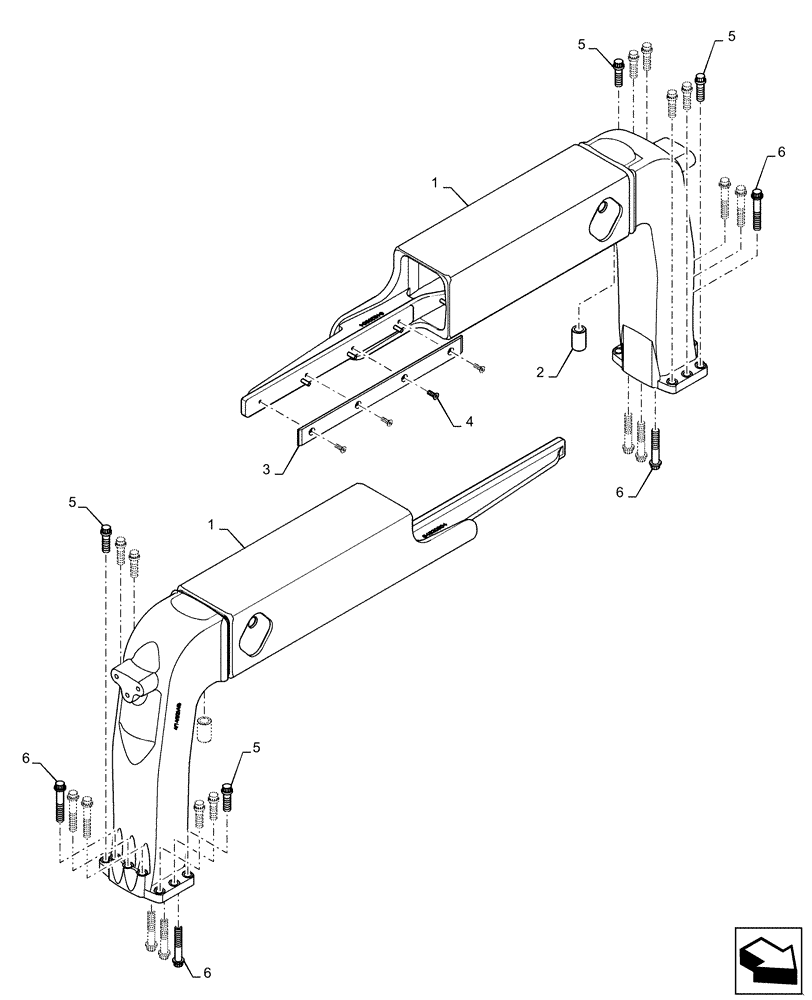

Запчасти Case IH PATRIOT 2250 (27.100.AK[01]) - REAR AXLE (27) - REAR AXLE SYSTEM

1

47457526

AXLE

Rear Axle

1шт.

2

342939A1

SLEEVE

Dowel

2шт.

3

84536335

LINER

Axle Slide

1шт.

4

14442124

SCREW,Flat Csk Hd, M8 x 1.25 x 25mm, Cl 8.8

4шт.

5

47389484

12 PT SCREW

M16 - 2 x 50mm, Cl 10.9, DOR

12шт.

6

47389505

12 PT SCREW

M16 - 2 x 90mm, Cl 10.9, DOR

12шт.
