Запчасти Case IH PATRIOT 2250 (25.100.BB[01]) - SUSPENSION, LH FRONT / REAR AXLE (25) - FRONT AXLE SYSTEM

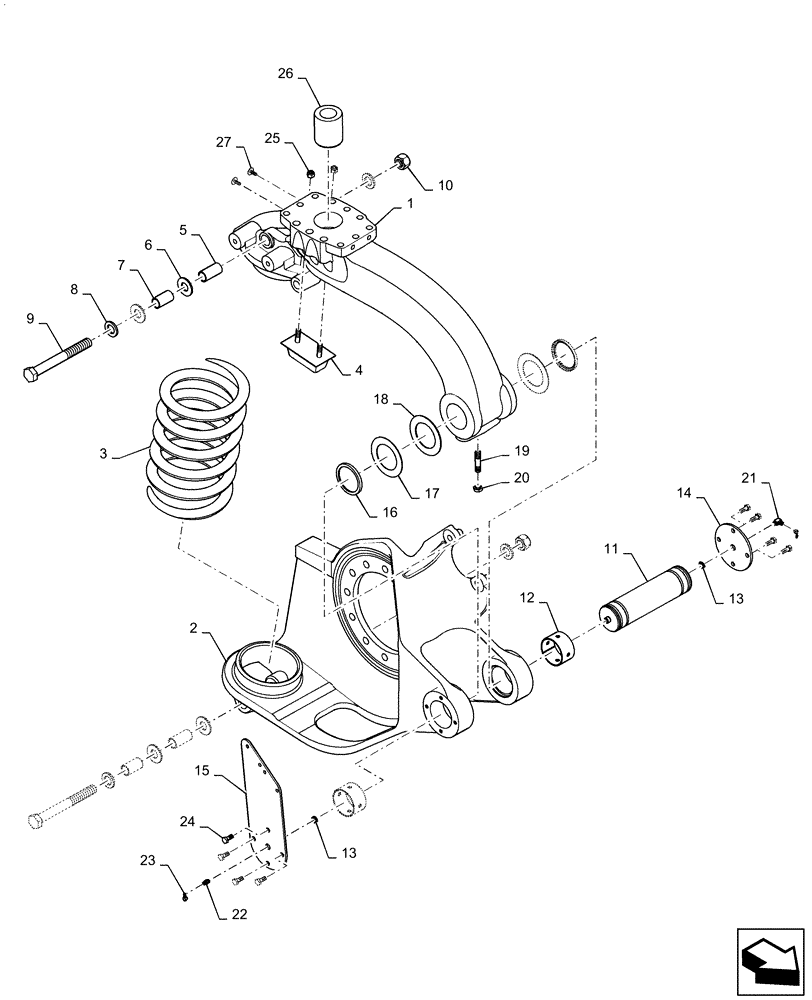

Схема запчастей Case IH PATRIOT 2250 - (25.100.BB[01]) - SUSPENSION, LH FRONT / REAR AXLE (25) - FRONT AXLE SYSTEM
18
1
25
10
2
21
6
8
13
26
24
23
13
9
11
27
7
22
14
4
15
19
16
17
5
3
12
20

Артикул

Название

Примечание

Количество

1

84555501

ARM

Upper Suspension Arm, LH

1шт.

2

84311369

CASTING

Lower Suspension Arm, LH

1шт.

3

BN314705

COIL SPRING

Suspension

1шт.

4

BN306889

BUMPER

Rubber Jounce, with 3/8" -16 Mounting Studs

1шт.

5

87269215

SPACER

Shock, Suspension

2шт.

6

47390058

WASHER

Flat, 7/8" ID x 1 3/4" OD

4шт.

7

84314763

SPACER

Shock, 1 3/4" Long

2шт.

8

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

86980468

BOLT,Hex, M20 x 180mm, Cl 8.8

2шт.

10

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

2шт.

11

84314719

SHAFT

Suspension Pivot

1шт.

12

87552137

BEARING COVER

Sleeve, Lower

2шт.

13

238-8112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 8, 90 Duro

2шт.

14

84205943

CUP COVER

Suspension Pivot Shaft

1шт.

15

84368033

CAP COVER

Suspension Pivot Shaft

1шт.

16

BN302044

SEAL,63.5mm ID x 76.2mm OD x 6.35mm Thk

Lower

2шт.

17

BN302047

SHIM,64mm ID x 98.3mm OD x 1.44mm Thk

Machine Bushing

2шт.

18

BN302048

SHIM,64.01mm ID x 98.55mm OD x 2.55mm Thk

Machine Bushing

1шт.

19

BN321041

SET SCREW

M12 x 55mm

1шт.

20

87344035

NUT

Jam, M12 - 1.75, DOR

1шт.

21

713608R91

LUBE NIPPLE,90 Degree, M8 x 1

1шт.

22

BN302051

NIPPLE, LUBE,M8 x 1, Straight

1шт.

23

BN69951

CAP

Grease

2шт.

24

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

26

84414028

BUSHING,38.1mm ID x 63.45mm OD x 74mm L

Suspension

1шт.

27

87268898

RIVET

Nylon

2шт.

Выбрано товаров: 27
