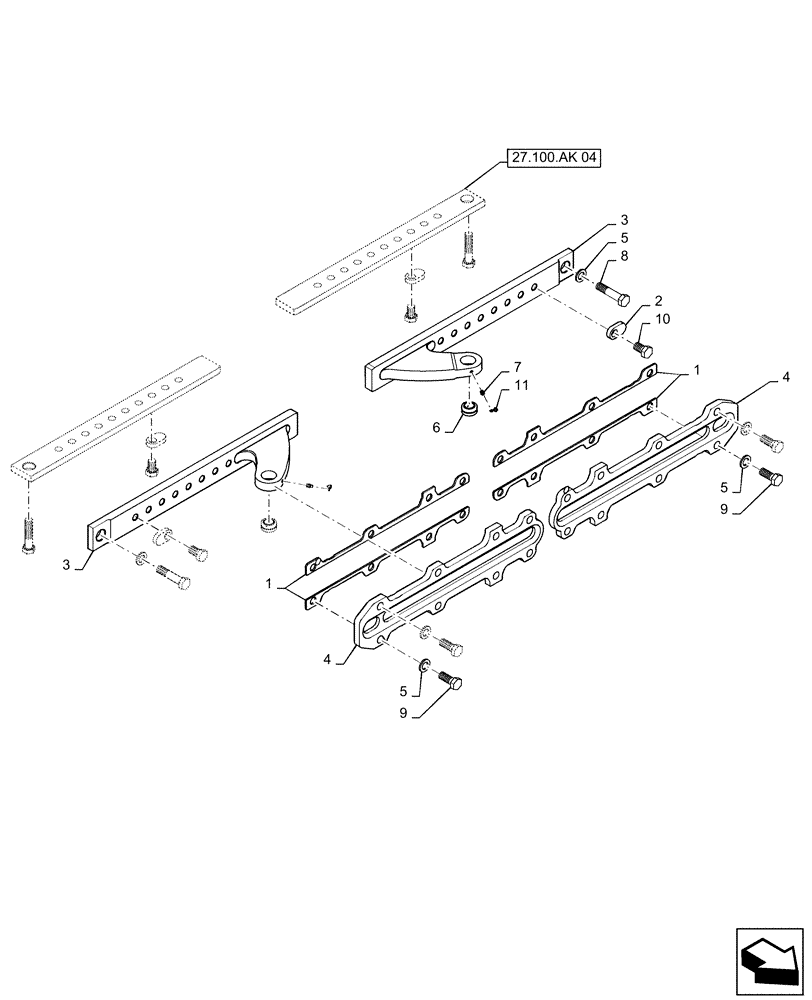

Запчасти Case IH PATRIOT 2250 (25.100.AV[06]) - AXLE STOP, MANUAL ADJUST (25) - FRONT AXLE SYSTEM

1

47463829

PLATE

Axle Spacer

4шт.

2

BN320759

STOP

Slide Adjust

4шт.

3

47460836

STEERING ARM

Plate

2шт.

4

47552392

PLATE

Axle Stop, Hydraulic

2шт.

5

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

16шт.

6

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

Self Aligning

2шт.

7

BN302051

NIPPLE, LUBE,M8 x 1, Straight

2шт.

8

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

4шт.

9

86980459

BOLT,Hex, M20 x 50mm, Cl 8.8, Full Thd

16шт.

10

47546711

BOLT

Hex, M20 x 30mm, Cl 10.9, DOR

4шт.

11

BN69951

CAP

Grease

2шт.
