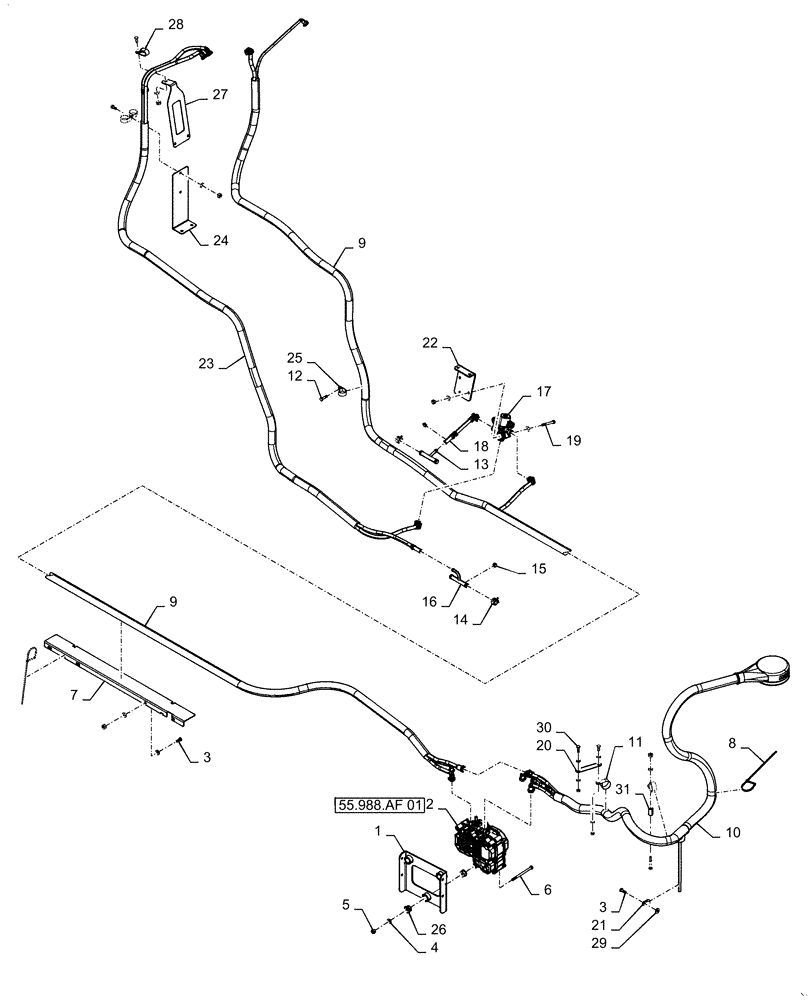

Запчасти Case IH PATRIOT 2250 (10.500.AD[01]) - DEF/ADBLUE™ LINES (10) - ENGINE

1

47530364

MOUNT

Supply Module

1шт.

2

47565934

ECU

Denox Supply Module

1шт.

See 55.988.AF 01 For Service Parts

1шт.

2

47565934R

REMAN ELECT CONTROL

Denox Supply Module

1шт.

2

47565934C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

21шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

37шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

32шт.

6

86980392

BOLT,Hex, M8 x 120mm, Cl 8.8

3шт.

7

47670742

MOUNT

DEF Bundle

1шт.

8

87557084

CABLE TIE,14"

Nylon, Black

7шт.

9

47673457

HOSE

Assy, DEF, Pressure

1шт.

10

47573544

HOSE

Assy, DEF, Supply

1шт.

11

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

Closed

3шт.

12

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

13

84381516

TEE

Run, DEF Heater

1шт.

14

1954736C1

HOSE CLAMP,#24

Spring

4шт.

15

1348264C1

HOSE CLAMP

Spring

2шт.

16

84590807

TEE

Run, DEF Heater

1шт.

17

84483089

HEATER

Valve

1шт.

18

84573525

HOSE

Hyd, DE Coolant, Supply

1шт.

19

86980387

BOLT,Hex, M8 x 70mm, Cl 8.8

3шт.

20

47404789

SUPPORT

Def Bundle

2шт.

21

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

Closed

1шт.

22

84572226

MOUNT

Heater Valve

1шт.

23

47547444

HOSE

Assy, DEF Bundle, Coolant

1шт.

24

47495621

SUPPORT

DEF Bundle

1шт.

25

87016869

CLAMP,31.7mm, Coat, 8.7mm Bolt Hole, P Type

Closed

10шт.

26

2855150

INSULATOR BLOCK

Rubber

6шт.

27

47531818

SUPPORT

DEF Bundle

1шт.

28

L101181

CLAMP,0.75" D Clamping pipes x 2

Double

1шт.

29

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

30

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

31

13606211

SPACER,8.5mm ID x 18mm OD x 30mm OAL

1шт.
