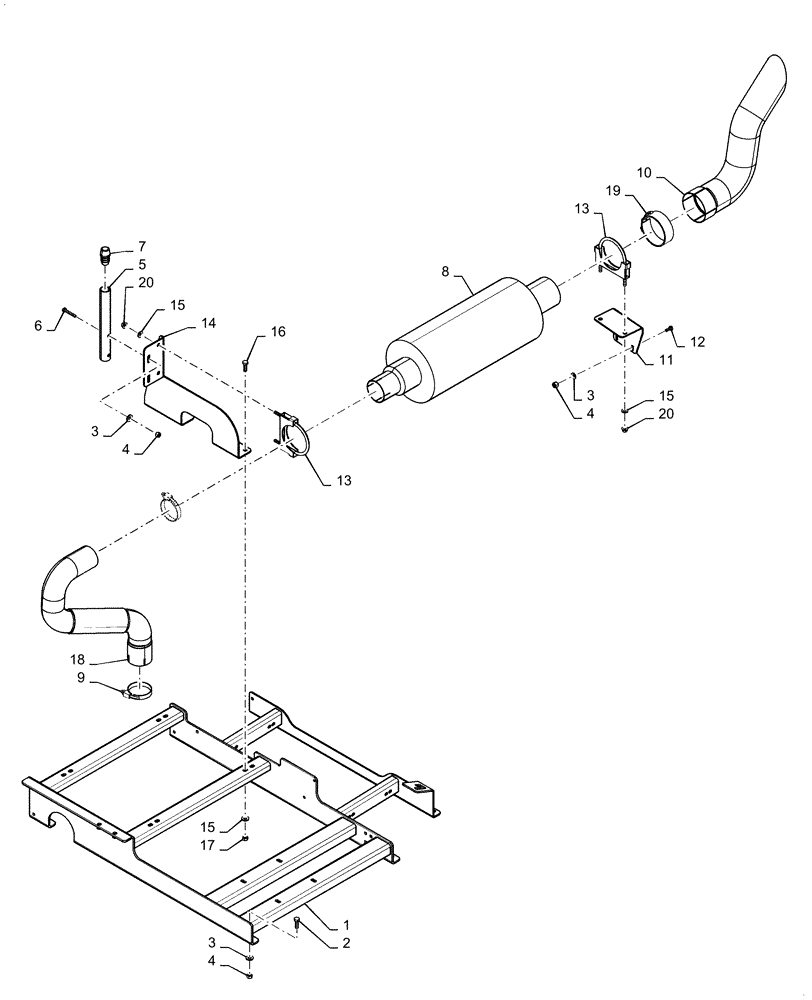

Запчасти Case IH PATRIOT 2250 (10.254.AD[02]) - EXHAUST SYSTEM W/ MUFFLER (10) - ENGINE

1

84553521

MOUNT

SCR

1шт.

2

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

16шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

5

47392332

SUPPORT

Hood Prop

1шт.

6

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

7

363226A1

BUMPER

Door

1шт.

8

87268887

MUFFLER

3" Inlet x 4" Outlet

1шт.

9

BN310689

CLAMP

Muffler

2шт.

10

47710461

PIPE

Tube, Exhaust

1шт.

11

47673862

SUPPORT

Exhaust Stack

1шт.

12

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

BN25927

CLAMP,104.8mm ID

Muffler, 4"

2шт.

14

47392255

SUPPORT

Muffler

1шт.

15

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

16

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

17

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

18

47883727

EXHAUST SYSTEM PIPE

1шт.

19

87314920

CLAMP

Exhaust, 4"

1шт.

20

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

4шт.
