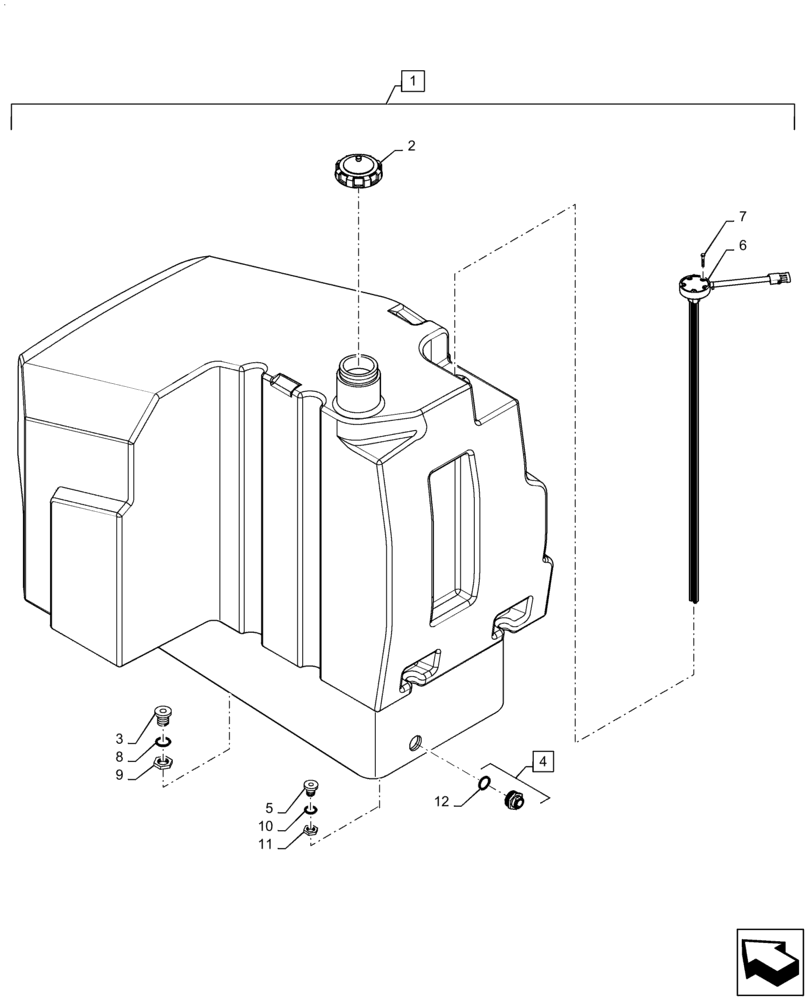

Запчасти Case IH PATRIOT 2250 (10.216.AI[02]) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE

1

84536517

FUEL TANK

Assy, Incl 2 - 12

1шт.

2

BN68502

CAP

Fuel, Vented

1шт.

3

87707148

FITTING

Bolt

1шт.

4

344475A1

FITTING

Fuel, Incl 12

1шт.

5

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

Tank Drain

1шт.

6

47517206

SENDER UNIT

Fuel

1шт.

7

87270794

BOLT,Hex, M5 x 30mm, SST

Fuel Sender

5шт.

8

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

9

282709A1

NUT

Fitting

1шт.

10

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

11

1251791C1

JAM NUT,3/4" - 16 LH Thread

Drain Fitting

1шт.

12

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

1шт.
