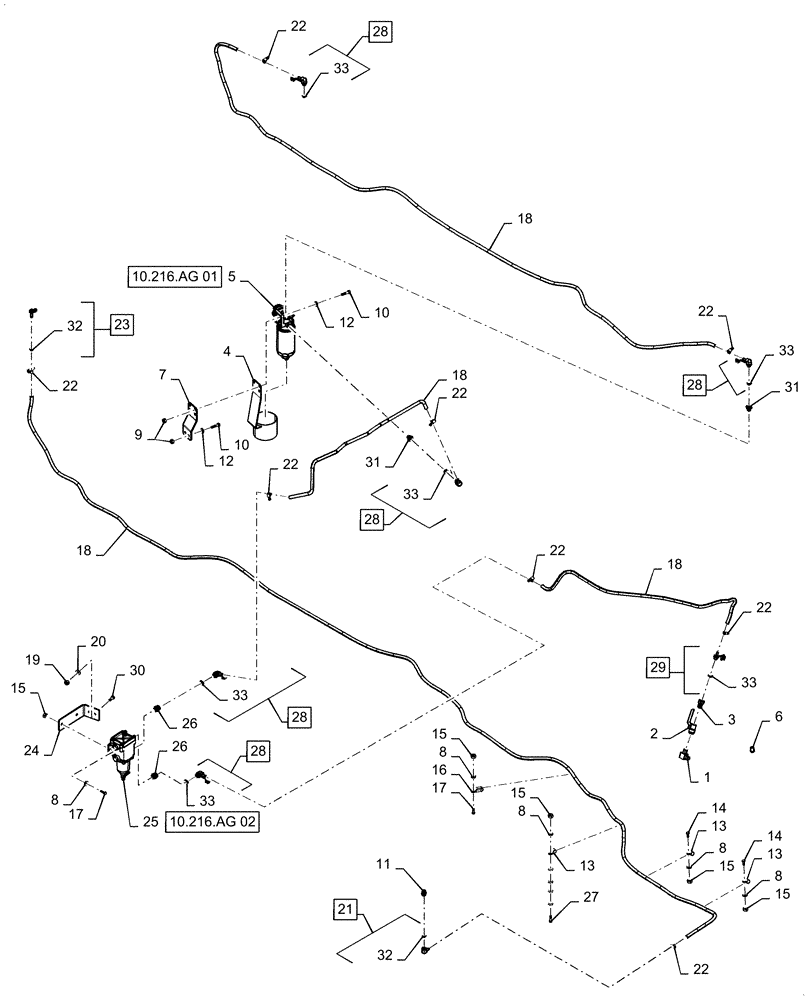

Запчасти Case IH PATRIOT 2250 (10.210.AF[01]) - FUEL LINE AND FITTING (10) - ENGINE

1

217-1226

ELBOW,90 Degree, 1/2"-14 Male

Pipe

1шт.

2

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

1шт.

3

87270102

FITTING,1/2" NPTF to Quick Connect

1шт.

4

87617087

GUARD

Filter

1шт.

5

84348875

FILTER ASSY

Complete Fuel

1шт.

See 10.216.AG 01 For Service

1шт.

6

217-406

PLUG,Hex Hd, 1/4" - 18 NPT

Drain

1шт.

7

47657938

PLATE

Filter Mounting

1шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

DOR

10шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

5шт.

10

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

5шт.

11

87270105

FITTING

3/8" NPT Adapter x Quick Connect

1шт.

12

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

13

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

3шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

DOR

2шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

16

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

17

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

DOR

3шт.

18

87267875

FUEL HOSE,9.53mm ID x 2076.45mm L, SAE 30R7

3/8" ID Bulk

1шт.

19

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

20

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

DOR

2шт.

21

87400460

90 ELBOW

Quick Connect x 3/8" Hose Barb, Incl 32

1шт.

22

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

8шт.

23

87408919

FITTING

Quick Connect x 3/8" Hose Barb, Incl 32

1шт.

24

47781328

MOUNT

Filter, Diesel Particulate / Water

1шт.

25

336429A2

FUEL FILTER

Diesel Particulate / Water

1шт.

See 10.216.AG 02 For Service

1шт.

26

47682539

FITTING

Adapter, Quick Connect x 3/4 -16 ORB

2шт.

27

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

DOR

1шт.

28

8605735

90 ELBOW

90° Adaptor, Quick Connect x 3/8" Hose Barb, Incl 33

5шт.

29

8605736

FITTING

Quick Connect x 3/8" Hose Barb, Incl 33

1шт.

30

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

DOR

2шт.

31

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

Fitting

2шт.

32

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

Viton

2шт.

33

87445405

O-RING

Viton

6шт.
