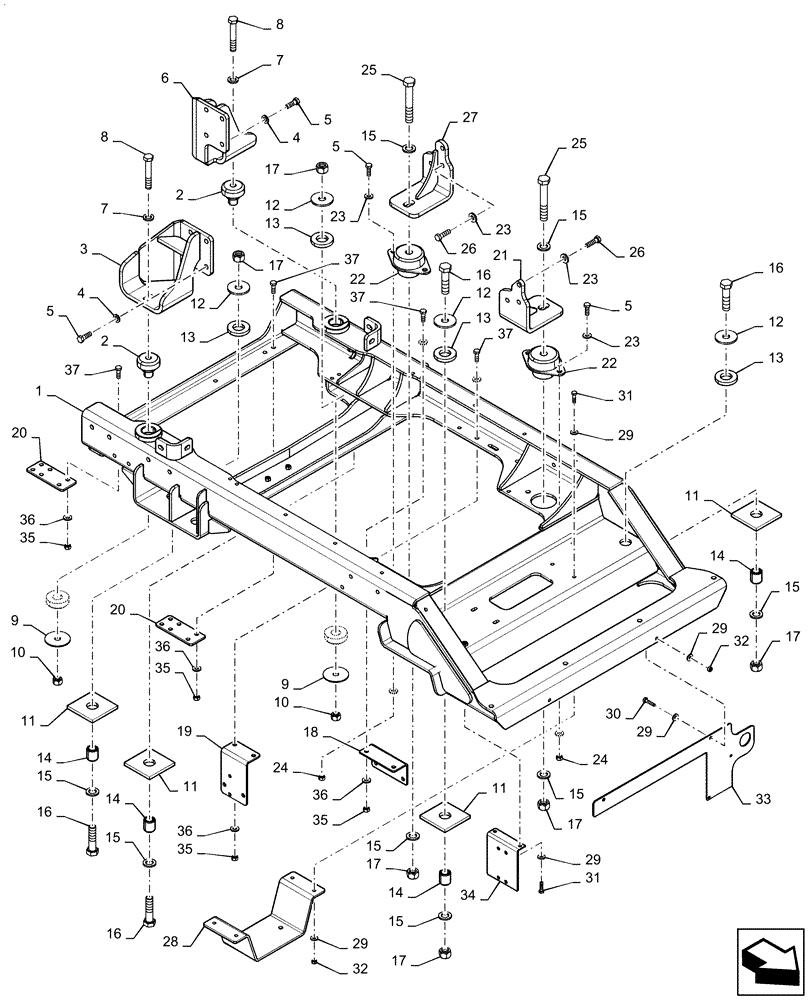

Запчасти Case IH PATRIOT 2250 (10.001.AK[01]) - ENGINE SUBFRAME MOUNTING PARTS (10) - ENGINE

1

47613352

MOUNT

Engine Sub Frame

1шт.

2

117846A1

INSULATOR BLOCK,16.69mm ID x 64.8mm OD x 84.6mm L

Engine Mount

2шт.

3

47613561

MOUNT

RH Rear

1шт.

4

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

DOR

8шт.

5

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

DOR

12шт.

6

47613615

MOUNT

LH Rear

1шт.

7

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

DOR

2шт.

8

86980448

BOLT,Hex, M16 x 100mm, Cl 8.8

DOR

2шт.

9

BN316871

WASHER

Top, Snubber

2шт.

10

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

11

86986942

ISOLATOR

Rubber

4шт.

12

BN322925

WASHER

M20, Rebound

4шт.

13

87270628

ISOLATOR

Rubber

4шт.

14

87270502

MOUNTING PLATE

Bushing Engine

4шт.

15

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

DOR

8шт.

16

87341550

BOLT,Hex, M20 - 2.5 x 80mm, Class 8.8, DOR

4шт.

17

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

6шт.

18

47655095

BRACKET

Motor Control Valve

1шт.

19

47657099

PLATE

Valve Mount

1шт.

20

47657006

PLATE

Filter Mount

2шт.

21

87547317

MOUNTING PLATE

LH Engine

1шт.

22

BN324263

MOUNTING PLATE

Mount, Center, Bonded

2шт.

23

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

DOR

14шт.

24

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

25

87341998

BOLT,Hex, M20 x 130mm, Cl 10.9

DOR

2шт.

26

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

DOR

6шт.

27

87547318

MOUNTING PLATE

RH Engine

1шт.

28

47647308

MOUNT

RH Engine

1шт.

29

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

DOR

14шт.

30

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

DOR

2шт.

31

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

DOR

6шт.

32

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

33

47653465

MOUNT

Hydraulic Valve

1шт.

34

47681335

MOUNT

Node

1шт.

35

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

36

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

DOR

12шт.

37

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

DOR

8шт.
