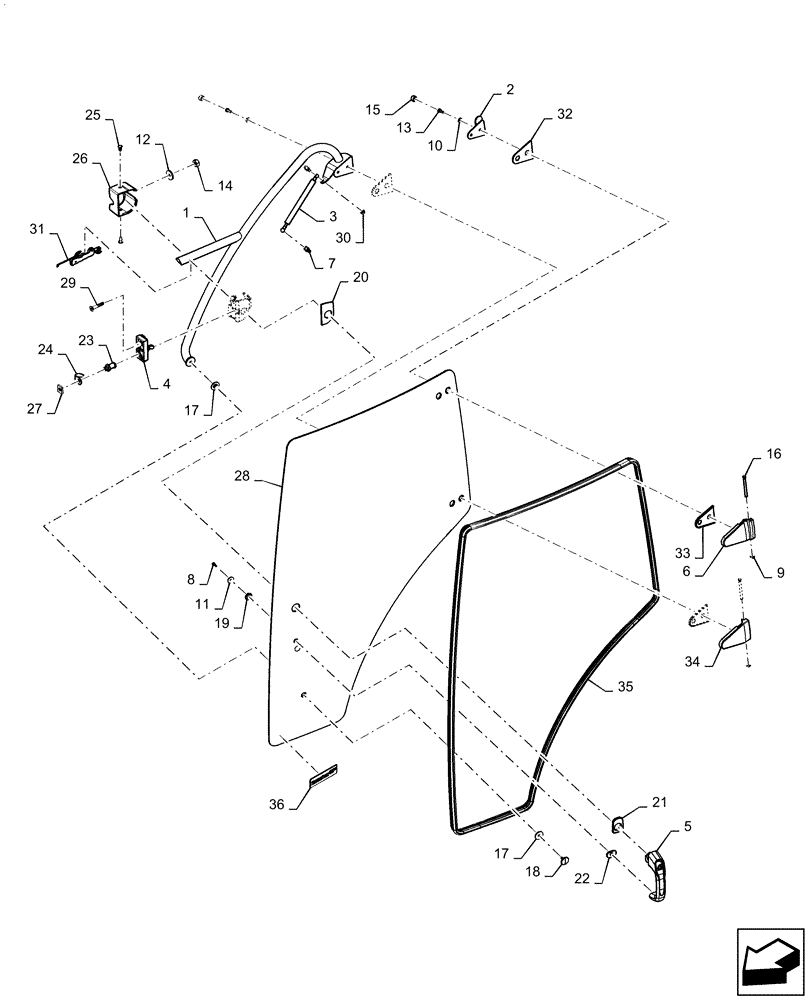

Запчасти Case IH PATRIOT 2250 (90.154.AA[01]) - CAB DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84313101

DOOR HANDLE

LH, Handrail

1шт.

2

84319872

BRACKET

Upper Hinge

1шт.

3

84272165

GAS STRUT,Min. Extension 253mm L, Max. Extension 323mm L

Door Regulator

1шт.

4

82032406

LOCK

Latch Assembly

1шт.

5

82029168

HANDLE

Outer

1шт.

6

84329980

HINGE

LH, Door

1шт.

7

82000409

BALL STUD,M8 x 1.25

Door Regulator Pivot

2шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

Lever

1шт.

9

11087976

CIRCLIP,Ext., M8, BLO

2шт.

10

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

11

12640607

WASHER,6.15mm ID x 25mm OD x 2mm Thk

1шт.

12

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

14

9706690

NUT,M8 x 1.25, Cl 8

2шт.

15

5089481

CAP,17mm OD

Hinge Screw

4шт.

16

5091925

PIN,8mm OD x 97mm L

Hinge

2шт.

17

81868323

SEALING WASHER,8.1mm ID x 36mm OD x 5.3mm Thk

Window

2шт.

18

82013304

SCREW,Pan HD, M8 x 22mm

1шт.

19

82029142

GASKET,16mm ID x 26mm OD x 3mm Thk

Door Handle, Inside Lower

1шт.

20

82029165

GASKET,5.3-6.9mm Thk

Latch Bracket

1шт.

21

82029170

GASKET,5-6.5mm Thk, 32mm ID

Door Handle, Upper

1шт.

22

82029171

GASKET,5mm Thk, 12mm ID

Door Handle, Lower

1шт.

23

82029172

STRIKER PLATE

Door Latch

1шт.

24

82029173

HOOK

Striker Cover

1шт.

25

82029174

RUBBER BUTTON,6mm Hole

Trim Stud

2шт.

26

82034201

COVER

Latch Cover

1шт.

27

83994378

NUT,M12 x 1

Door Latch

1шт.

28

84224132

CAB GLASS

LH, Door

1шт.

29

84320291

HEX SOC SCREW,FLAT, M8 x 1.25 x 45mm, Cl 10.9

2шт.

30

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

31

87566909

LEVER

Door Latch

1шт.

32

87620476

RUBBER PAD

Hinge

2шт.

33

87620762

RUBBER PAD

Hinge

2шт.

34

87700818

HINGE

Lower

1шт.

35

84224130

SEAL, GLASS,4150mm L

LH, Door

1шт.

36

84390356

DECAL

Engine Power

1шт.
