(90.151.AT[02]) - MONITOR MOUNTING ROD, CAB

Запчасти Case IH PATRIOT 2250 (90.151.AT[02]) - MONITOR MOUNTING ROD, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

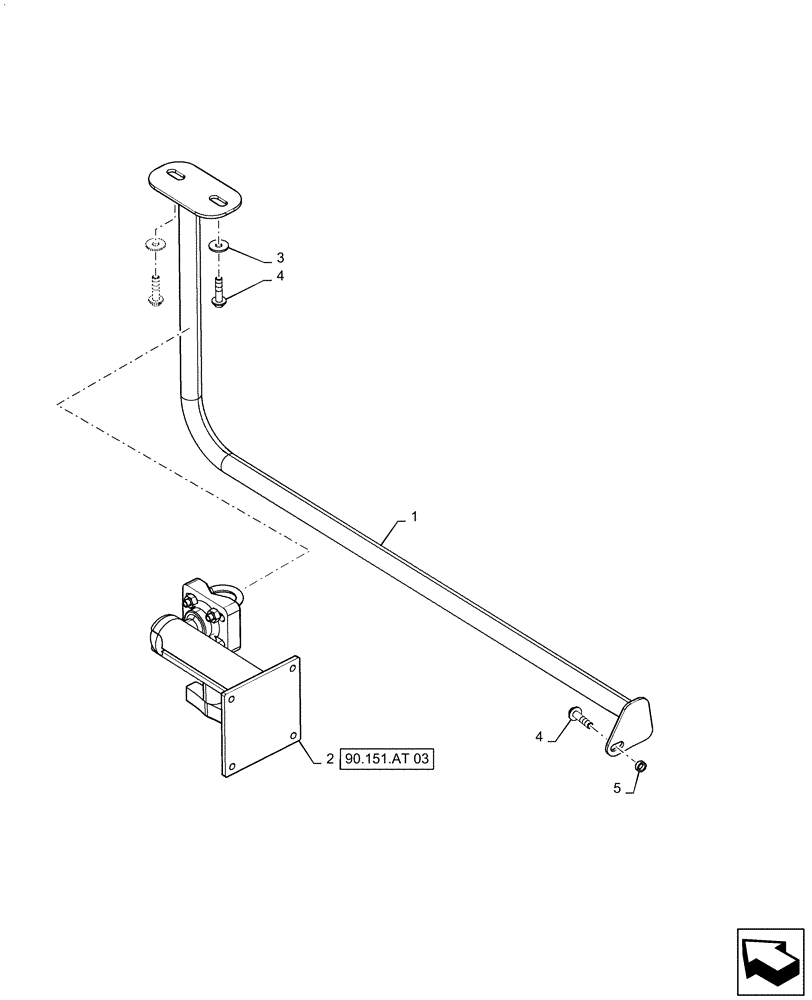

Схема запчастей Case IH PATRIOT 2250 - (90.151.AT[02]) - MONITOR MOUNTING ROD, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.at 03
4
5
4
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47667163

BAR

Monitor Mounting

1шт.

2

87386396

MOUNT

Ram, Complete

1шт.

See 90.151.AT 03 For Service

1шт.

3

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

4

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

3шт.

5

47406348

SPACER,7mm ID x 9.5mm OD x 3.5mm L

Rear Mount

1шт.
