(90.151.AP[02]) - CONSOLE, COVER ASSY

Запчасти Case IH PATRIOT 2250 (90.151.AP[02]) - CONSOLE, COVER ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

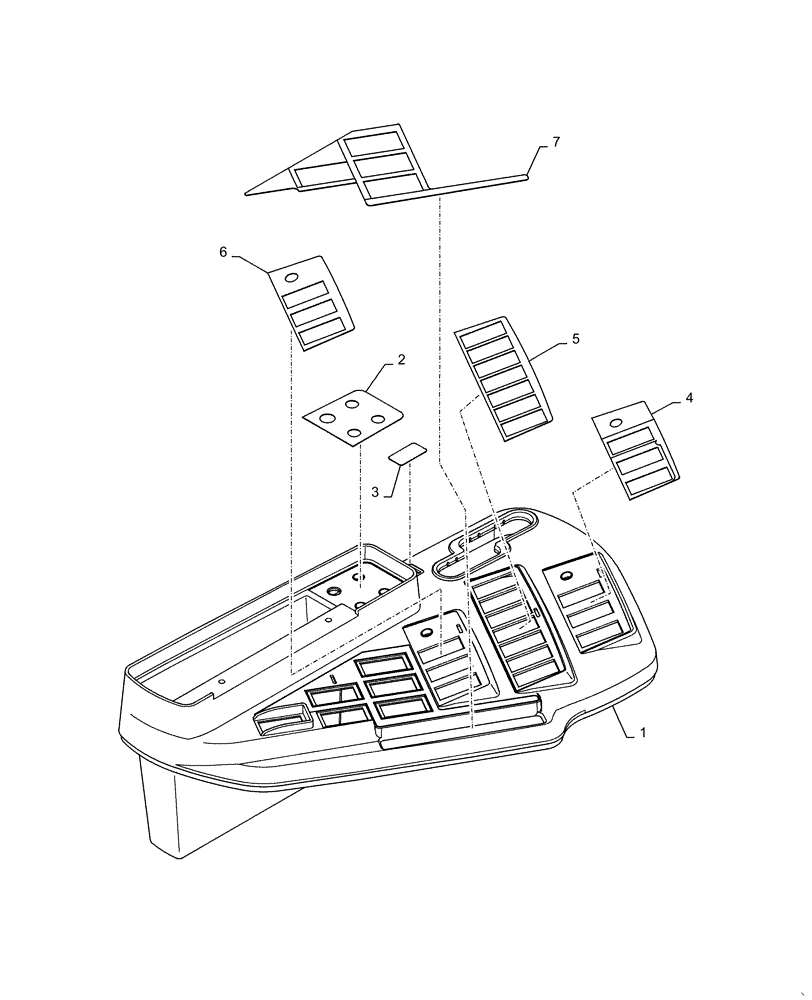

Схема запчастей Case IH PATRIOT 2250 - (90.151.AP[02]) - CONSOLE, COVER ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
7
6
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87267349

COVER

RH, Console

1шт.

2

378608A1

DECAL

Wheel Spacing

1шт.

3

87267350

DECAL

Propulsion Control

1шт.

4

47716757

DECAL

Aim Command

1шт.

5

87266886

DECAL

Boom Section

1шт.

6

47719377

DECAL

Foam Control

1шт.

7

87266893

DECAL

Throttle

1шт.

Выбрано товаров: 7
