(90.150.AJ[01]) - CAB SUSPENSION

Запчасти Case IH PATRIOT 2250 (90.150.AJ[01]) - CAB SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

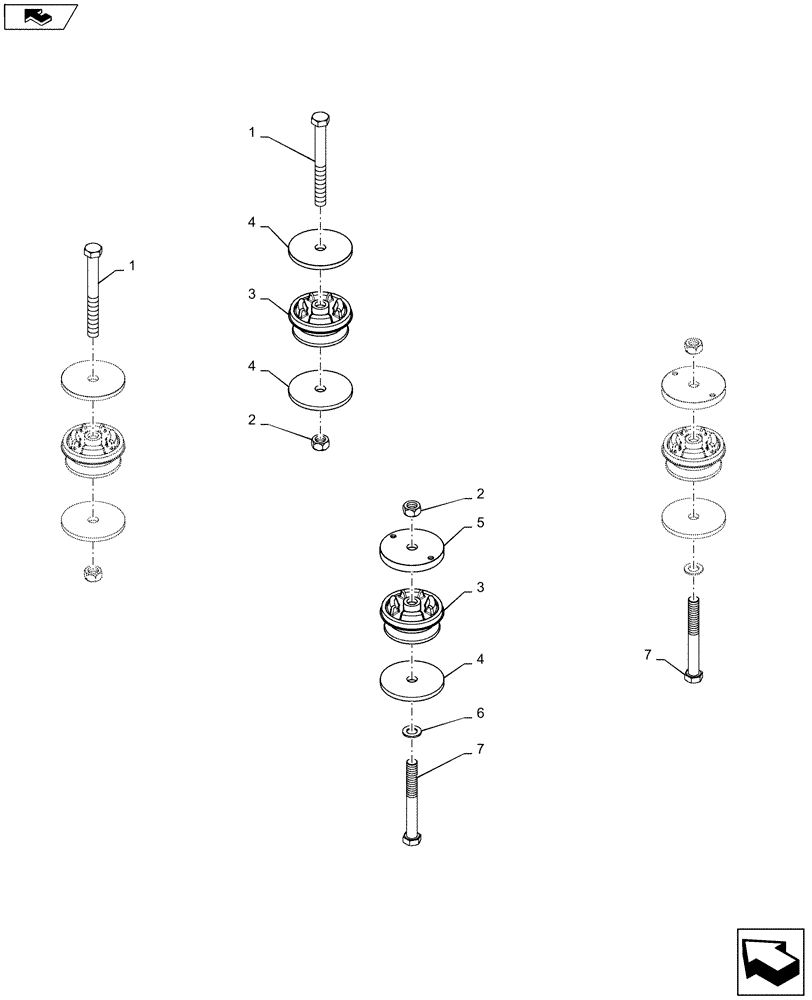

Схема запчастей Case IH PATRIOT 2250 - (90.150.AJ[01]) - CAB SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
4
1
7
7
6
3
2
5
4
3
1
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

15990931

BOLT,Hex, M20 x 1.5 x 190, 10.9

Front

2шт.

2

86015195

NUT,M20 x 1.5, Cl 10

4шт.

3

83983548

ISOLATOR,120mm OD x 64mm L

Insulator

4шт.

4

87302042

SPACER,21mm ID x 120mm OD x 8.7mm L

Cab Support

6шт.

5

84354368

SPACER

Rear Cab Support

2шт.

6

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

Rear

2шт.

7

87493301

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

M20 x 1.5 170, Rear

2шт.

Выбрано товаров: 7
