(90.130.AH[02]) - CROP SHIELD, FIXED ASSY

Запчасти Case IH PATRIOT 2250 (90.130.AH[02]) - CROP SHIELD, FIXED ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

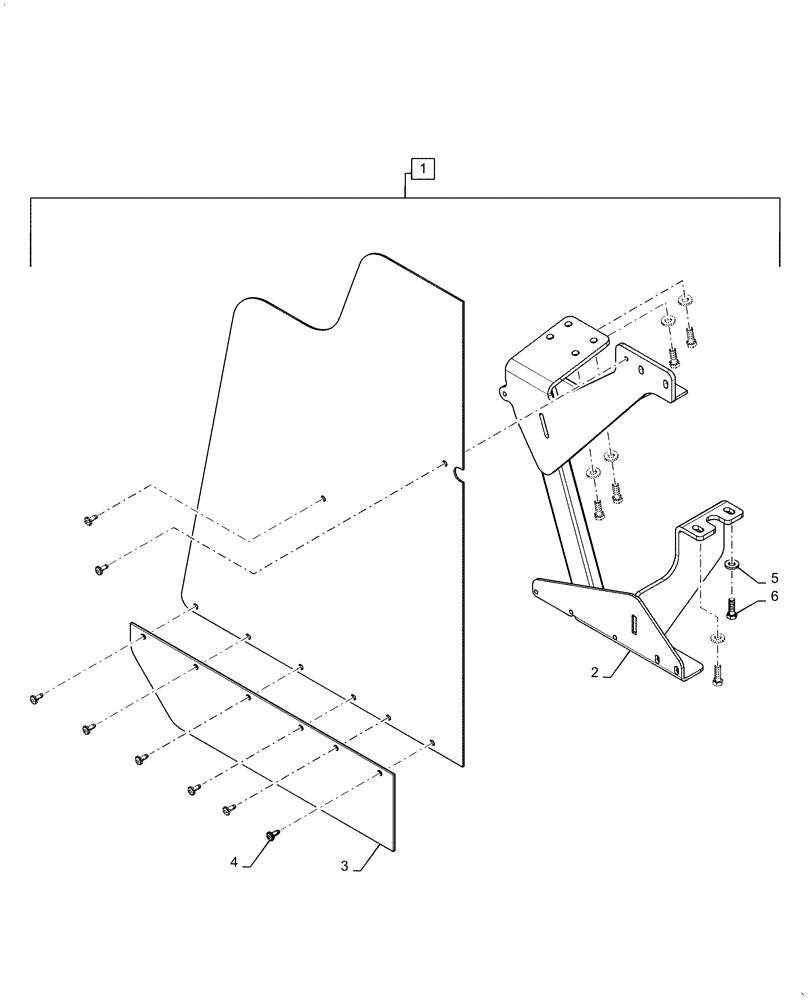

Схема запчастей Case IH PATRIOT 2250 - (90.130.AH[02]) - CROP SHIELD, FIXED ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
3
1
2
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47750035

SHIELD

Crop, Fixed Assy, LH, Incl 2 - 6

1шт.

1

47750036

SHIELD

Crop, Fixed Assy, RH, Incl 2 - 6

1шт.

2

47750411

FRAME

Frame, Fixed, LH

1шт.

2

47750412

FRAME

Frame, Fixed, RH

1шт.

3

47750013

SHIELD

Skirt, Side

1шт.

4

47846360

CLIP

Fender, Plastic

8шт.

5

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

6

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

6шт.

Выбрано товаров: 8
