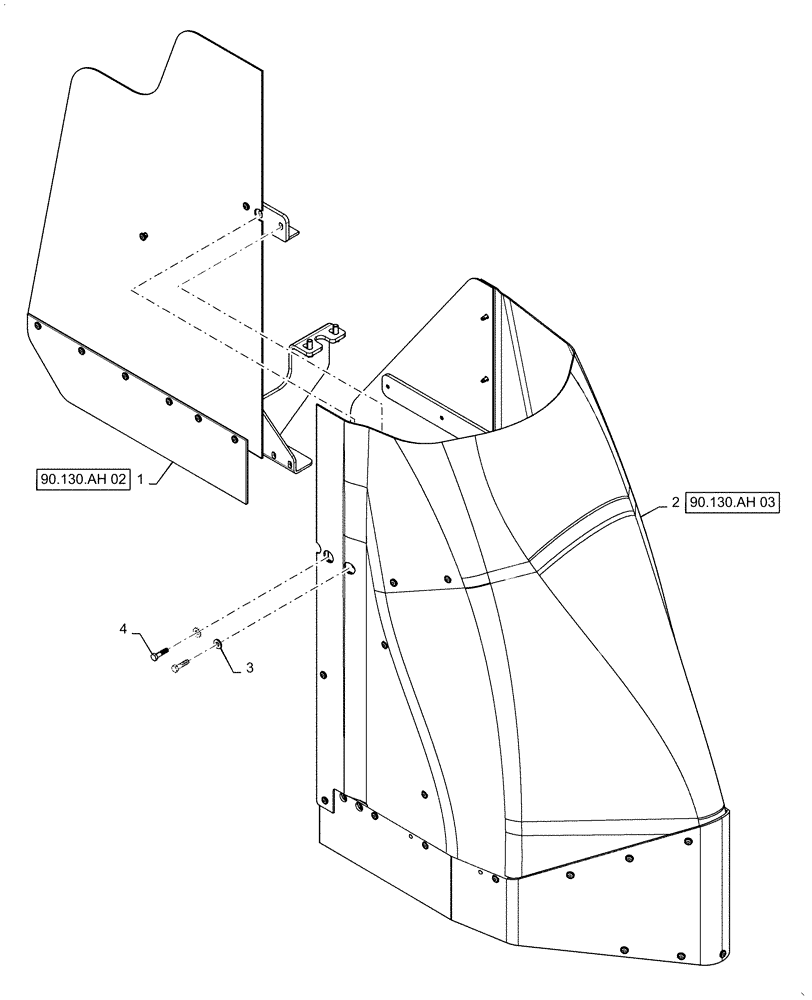

Запчасти Case IH PATRIOT 2250 (90.130.AH[01]) - CROP SHIELD ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47750035

SHIELD

Crop, Fixed, Assy, LH

1шт.

See 90.130.AH 02 for Service

1шт.

1

47750036

SHIELD

Crop, Fixed, Assy, RH

1шт.

See 90.130.AH 02 for Service

1шт.

2

47750331

SHIELD

Crop, Removable, Assy, LH

1шт.

See 90.130.AH 03 for Service

1шт.

2

47750332

SHIELD

Crop, Removable, Assy, RH

1шт.

See 90.130.AH 03 for Service

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

4

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

5

BN570007

STRAP

14" Zip Tie, Not Shown

16шт.

6

47951857

HOSE PROTECTION

Plastic Taco, Not Shown

4шт.
