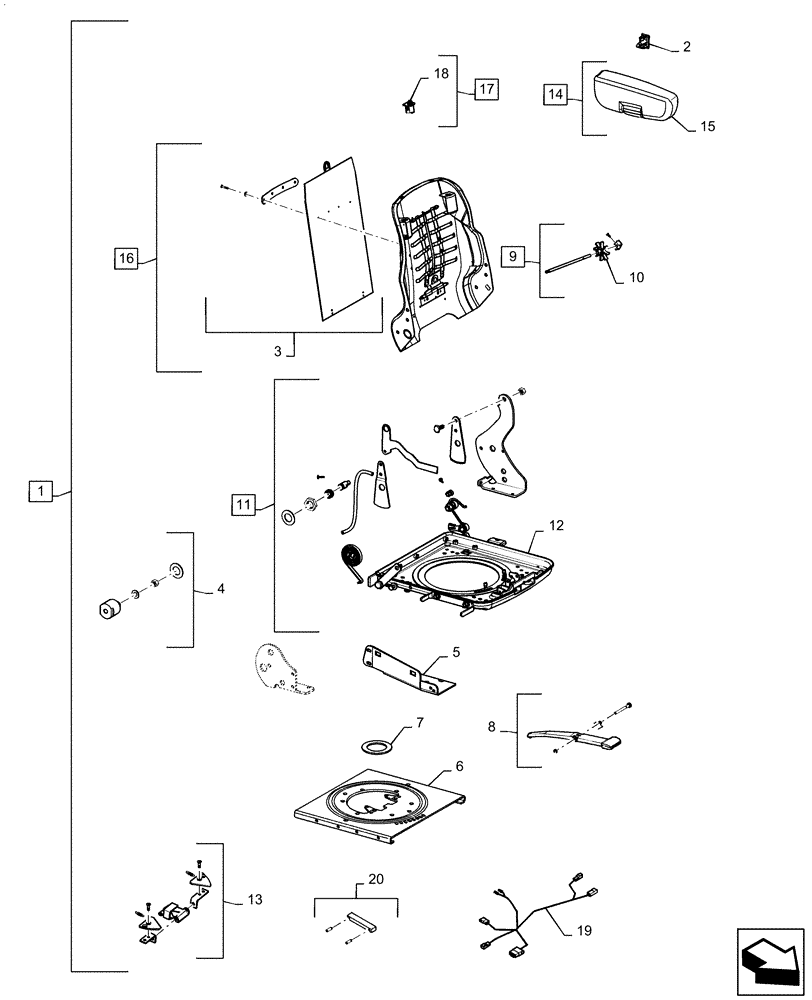

Запчасти Case IH PATRIOT 2250 (90.124.AE[01]) - SEAT FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47431950

SERVICE KIT

Frame, Incl 2 - 20

1шт.

2

87347940

ROCKER SWITCH

3 Position Air Control Switch

1шт.

3

86994172

SERVICE KIT

Manual Holder, Included in 16

1шт.

4

87396230

BUSHING

Console Service Kit

1шт.

5

86994157

BRACKET

Console Mounting

1шт.

6

47431973

MOUNTING PLATE

Slide Plate

1шт.

7

47431974

SPACER

Slide Plate

4шт.

8

87347941

SERVICE KIT

Slide Control

1шт.

9

87308130

SEAT BACK ADJUST DEV

Lumbar Service Kit, Incl 10, Included in 16

1шт.

10

87037462

SEAT BACK ADJUST DEV

Lumbar Adjusting Knob, Included in 9, 16

1шт.

11

86994165

SEAT ACCESSORY

Recliner Service Kit Incl 12

1шт.

12

87416475

KNOB

Recliner

1шт.

13

87347934

LATCH

Slide, Service Kit

1шт.

14

87347939

SERVICE KIT

Armrest, Complete, Less Switch, Incl 15

1шт.

15

87667335

ARMREST

Top / Inside, Included in 14

1шт.

16

86994155

ASSEMBLY

Backrest Pan, Incl 3, 9, 10

1шт.

17

86400227

SWITCH,Two Connectors, 90° Terminals

Operators Presence, Incl 18

1шт.

18

86400465

BOOT

Operators Presence, Included in 17

1шт.

19

84347599

HARNESS

Seat Suspension

1шт.

20

302016A1

PACKAGE,SERVICE

Slide Puck

1шт.
