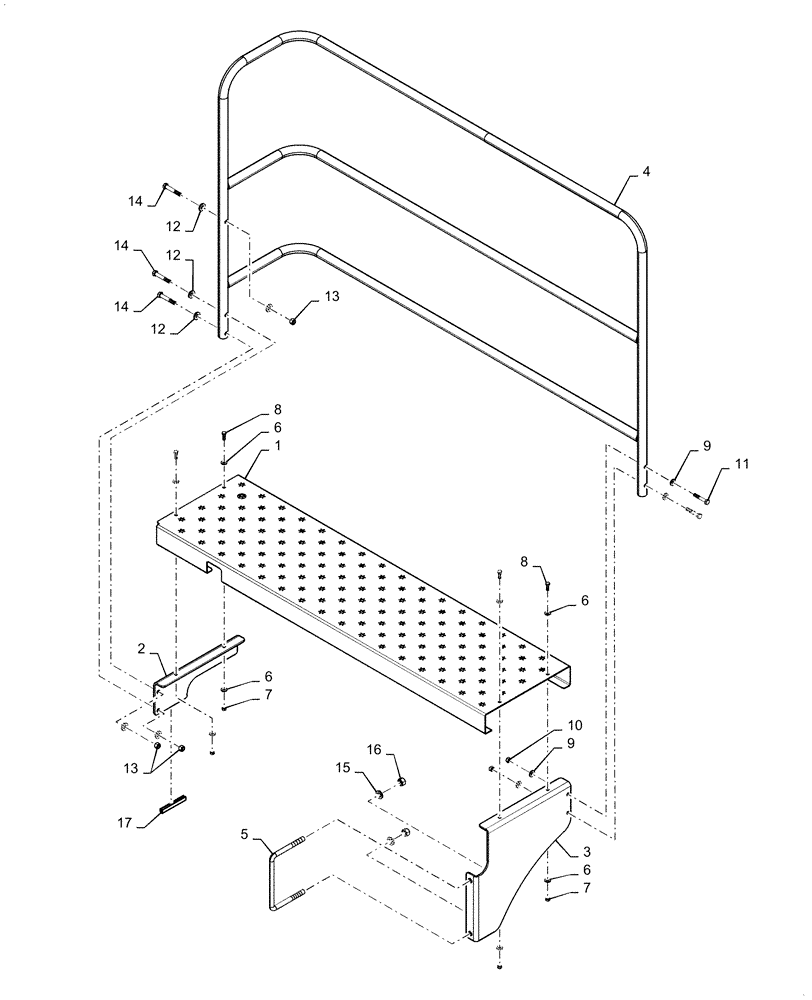

Запчасти Case IH PATRIOT 2250 (90.118.AC[03]) - REAR PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47838464

WALKWAY

Rear Walkway

1шт.

2

84330452

STEEL PLATE

Rear Walkway Mount

1шт.

3

47607791

PLATE

Rear Walkway Mount

1шт.

4

47712263

HANDRAIL

Rear Walkway

1шт.

5

47630475

U-BOLT

M16 - 2, 250mm Long, 110mm Inner, ZNC

1шт.

6

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

7

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

8

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

9

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

11

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

8шт.

12

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

13

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

14

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

HDN, DOR

6шт.

15

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

16

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

3шт.

17

47881607

TRIM

Edge Bulk

1шт.
