(90.116.AC[01]) - FENDER MOUNTING PARTS

Запчасти Case IH PATRIOT 2250 (90.116.AC[01]) - FENDER MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

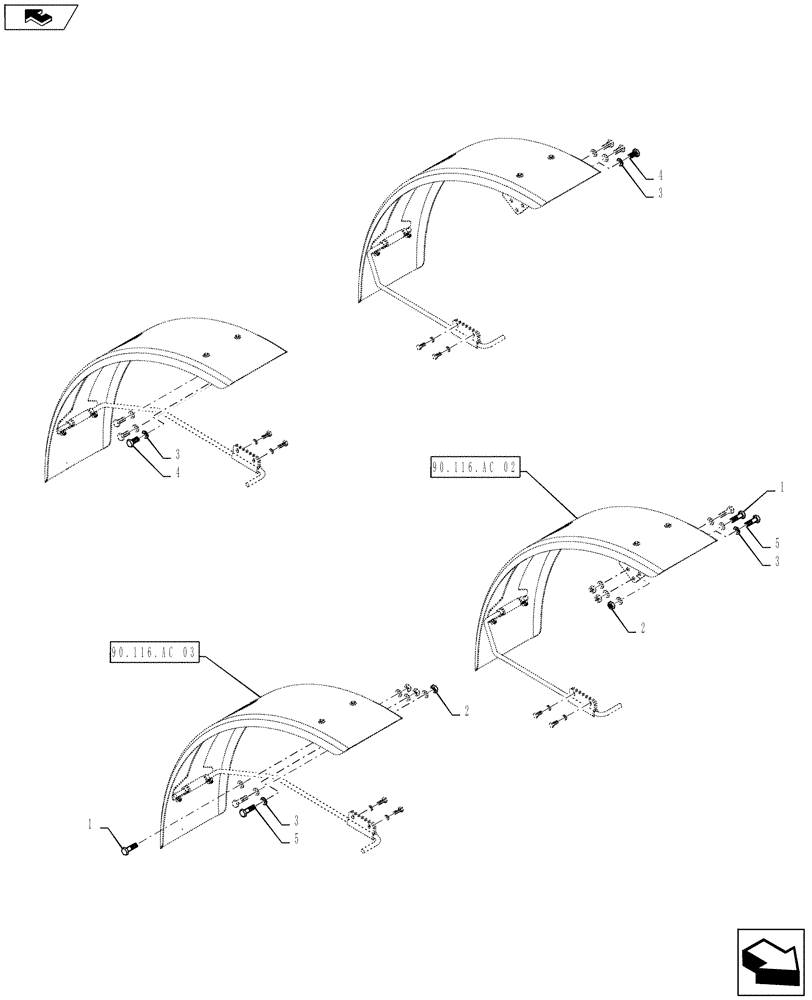

Схема запчастей Case IH PATRIOT 2250 - (90.116.AC[01]) - FENDER MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.ac 03
1
3
2
3
1
3
2
4
5
5
4
3
90.116.ac 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86980426

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

4шт.

2

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

6шт.

3

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

18шт.

4

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

6шт.

5

86980425

BOLT,Hex, M12 - 1.75 x 50mm, Cl 8.8, DOR

2шт.

Выбрано товаров: 5
