Запчасти Case IH PATRIOT 2250 (90.108.AC[03]) - DECALS, SAFETY (90) - PLATFORM, CAB, BODYWORK AND DECALS

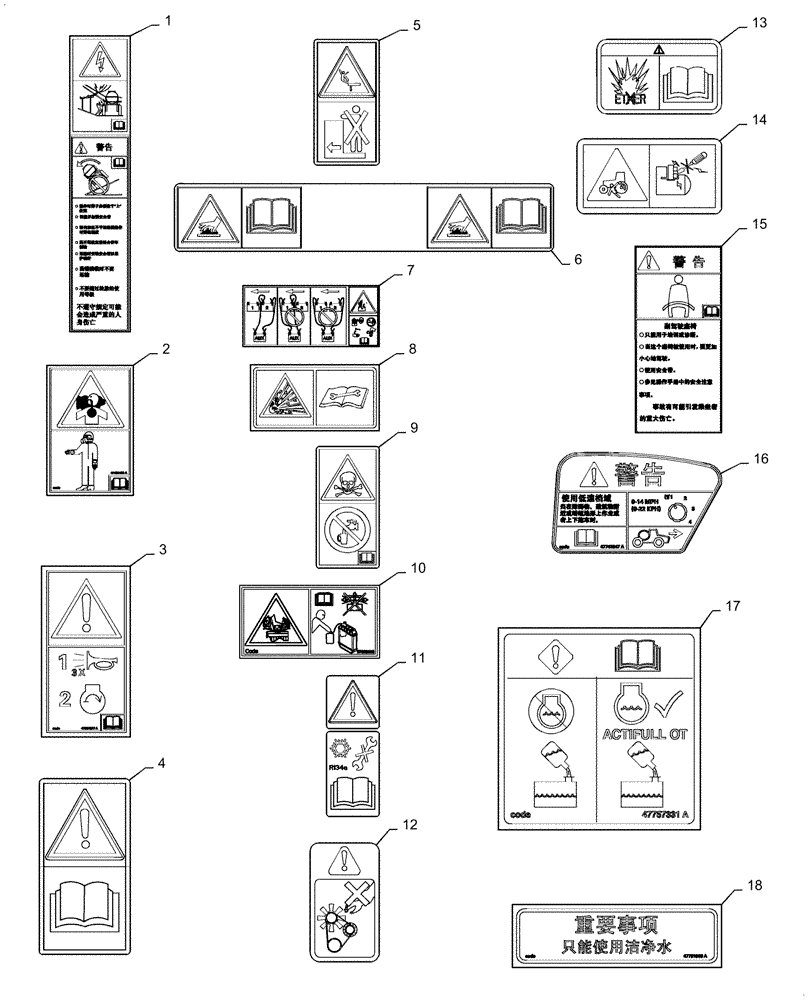

Схема запчастей Case IH PATRIOT 2250 - (90.108.AC[03]) - DECALS, SAFETY (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
13
18
6
10
7
14
11
1
3
2
12
5
17
8
9
16
4

Артикул

Название

Примечание

Количество

1

84537893

WARNING DECAL

Warning, Electrical Shock

1шт.

2

47433182

DECAL

Warning, Chemical Hazard

2шт.

3

47861827

DECAL

Important

1шт.

4

84004731

WARNING DECAL

Read Operator's Manual

1шт.

5

84004732

CAUTION DECAL

Do Not Ride

1шт.

6

87742248

CAUTION DECAL

Drain Oil

2шт.

7

87742247

CAUTION DECAL

Battery

1шт.

8

87745977

CAUTION DECAL

Accumulator

2шт.

9

87742251

WARNING DECAL

Do Not Drink

1шт.

10

87658005

WARNING DECAL

Warning, Radiator Cap

1шт.

11

84012596

DECAL

Warning, Refrigerant

1шт.

12

81871830

DECAL

Fan Warning

2шт.

13

87802167

DECAL

Ether Warning

1шт.

14

180543A1

DECAL

Engine Start Warning

1шт.

15

84163592

DECAL

Warning, Instructional Seat

1шт.

16

47742647

DECAL

Safety Speed, Chinese

1шт.

17

47757331

DECAL

Oat Coolant - Actifull OT - 75 x 75

2шт.

18

47751009

DECAL

Clean Water Only, Chinese

1шт.

Выбрано товаров: 18
