(90.108.AC[02]) - DECALS, OPERATIONAL

Запчасти Case IH PATRIOT 2250 (90.108.AC[02]) - DECALS, OPERATIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

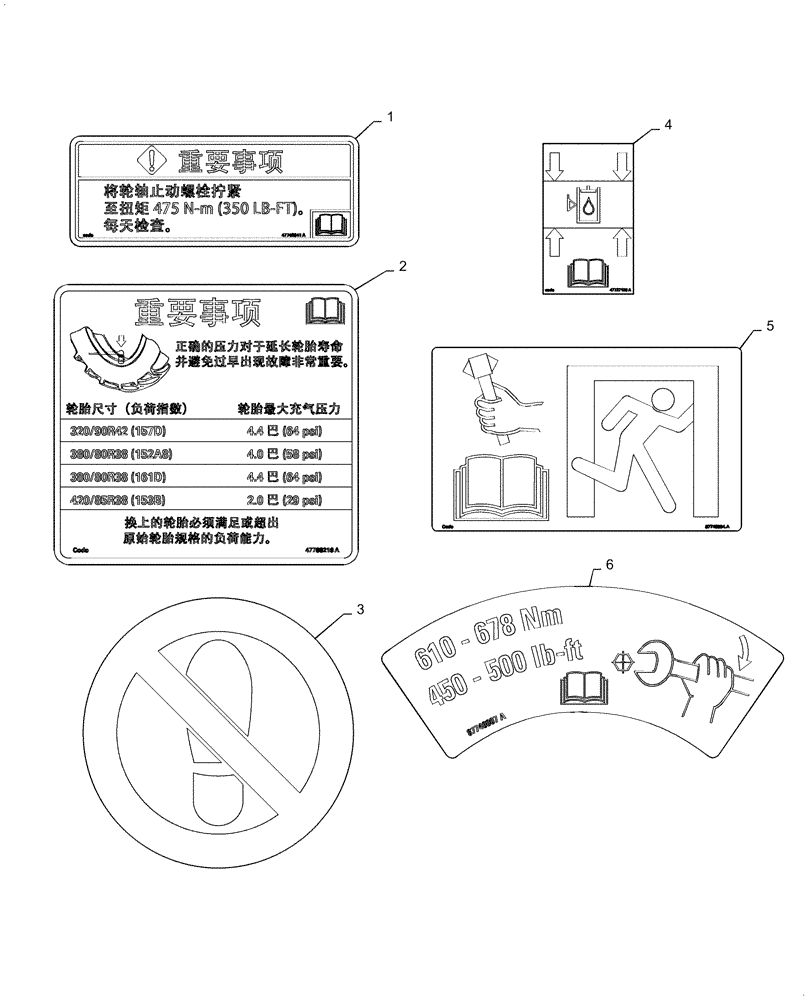

Схема запчастей Case IH PATRIOT 2250 - (90.108.AC[02]) - DECALS, OPERATIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
1
3
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47742641

DECAL

Axle Stop, Chinese

4шт.

2

47788216

DECAL

Important, Tire Pressure, Chinese

4шт.

3

84432904

DECAL

No Step, Chinese

1шт.

4

47727126

DECAL

Hydraulic Oil, Chinese

1шт.

5

87745994

CAUTION DECAL

Cab Exit, Chinese

1шт.

6

87746007

IMPORTANT DECAL

Torque Wheel Nuts, Chinese

4шт.
